Gutinvest

Lot 1

Home Sierra de cinta - grandes dimensiones - UKAY Sierra de cinta - Online auction

1 - Band sawing machine

Online Auctions

Categories

Share this bid

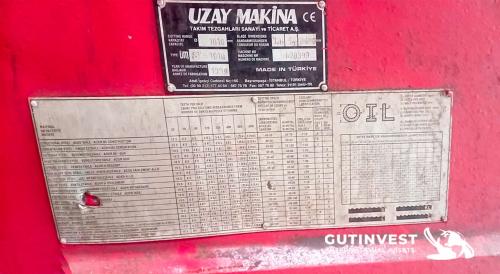

Manufacturer
UZAY MAKINA
Model
SY-1010
Year
1999
No. Series
620399
Observations

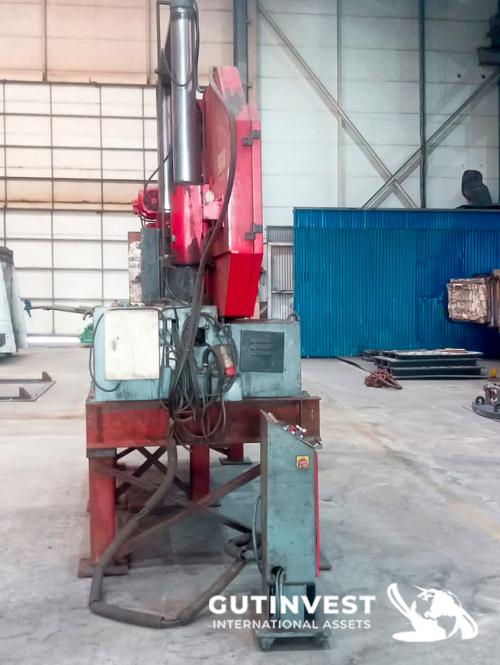

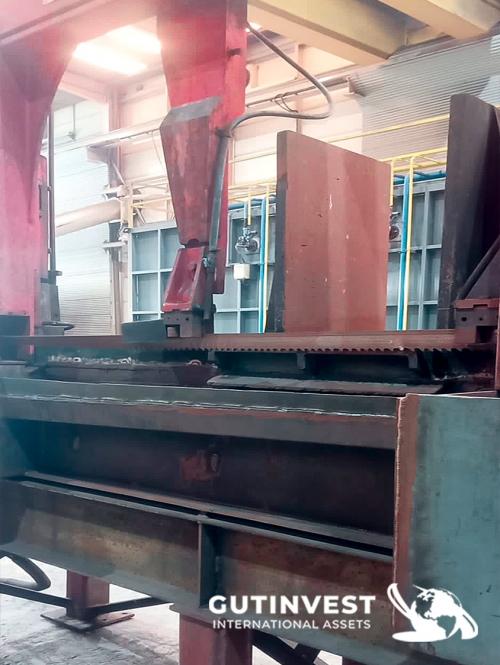

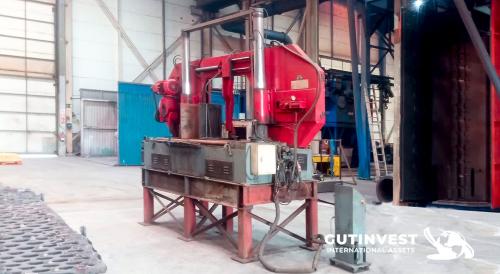

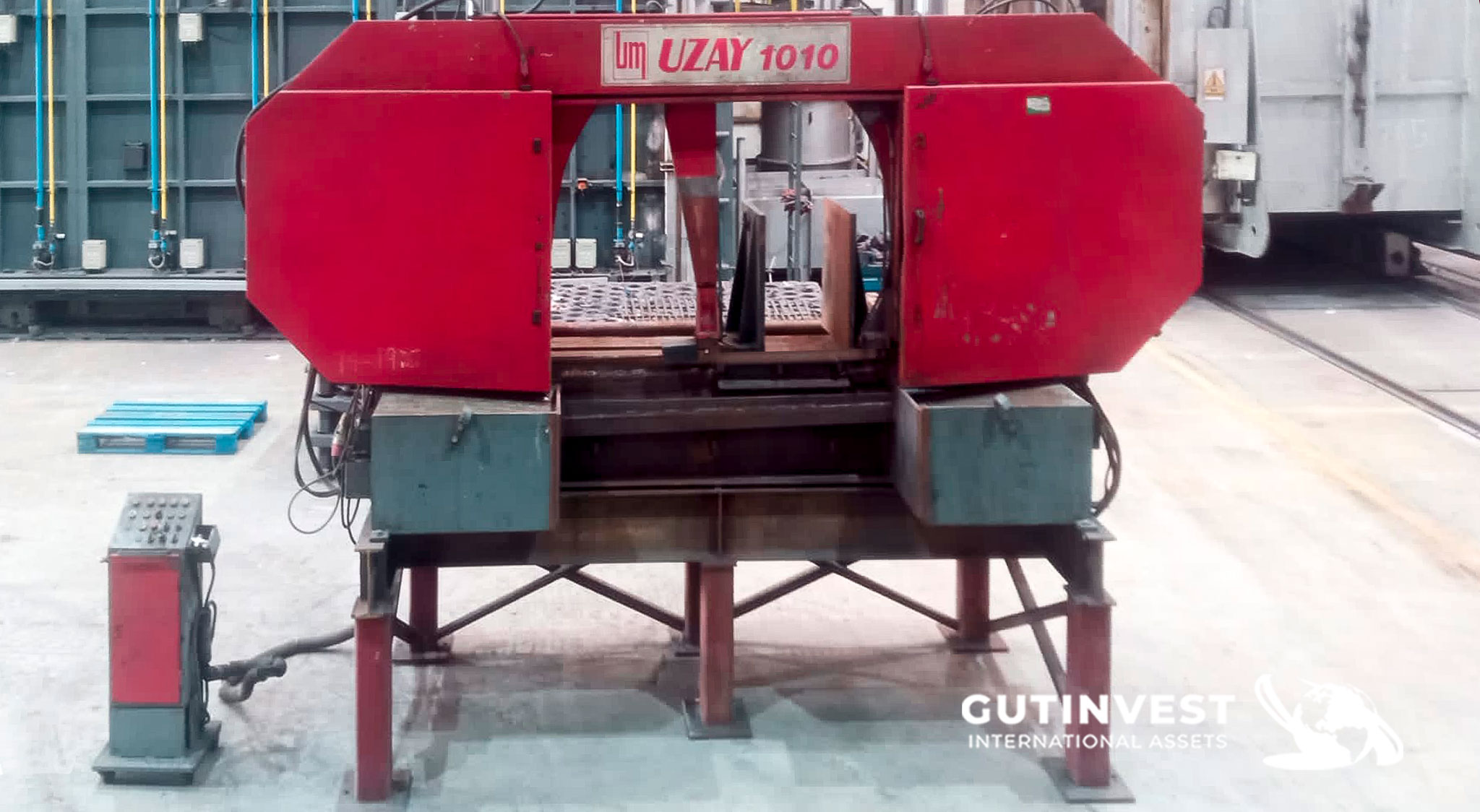

 UZAY saw model SY 1010,
Semi-automatic double column saw,
Distance between centers of the two columns 2250mm,
Diameter of the columns 170mm
Cutting measurements: diameter max 1010mm X 750mm
Rectangle 1010 x 1010 mm,
Square 1010mm x 1010mm
Round at 45º 620mm at 30º 820mm 45º L 500mm 30º L 660mm ,
Rectangle 45º R 1010 x620mm ,  30º R 1010 x 820mm , 45º L 1010mm x500mm , 30º L 1010mmx660mm,
Square 45º R 620mm , 30º R 820mm , 45º L 500mm , 30º L 660mm,
Cutting speed 15 to 105m/min (variable by electronic variator),
Main motor 4kw, total power 4,5kw, machine with motorized rotation,
Jaw height 600mm, jaw length 535 mm,
Estimated working height 725mm,

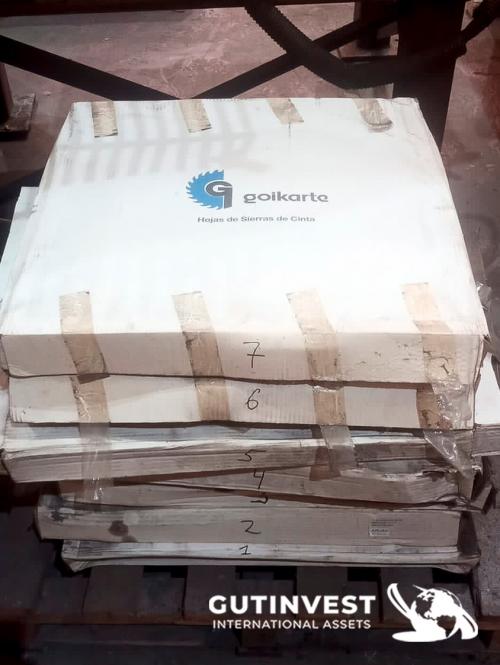

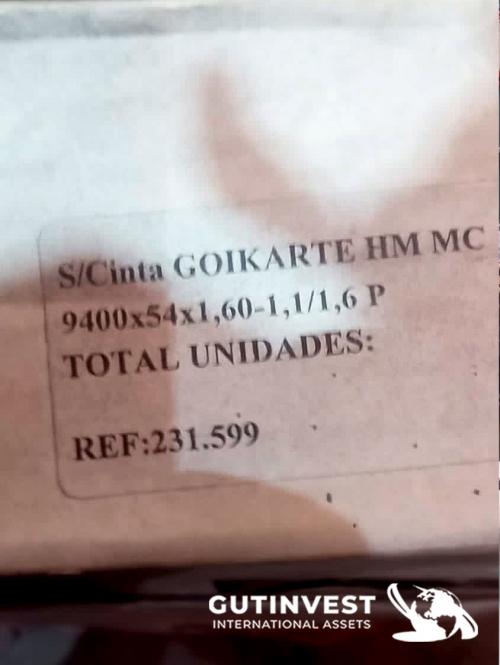

Tape dimensions 1.64mm x 54mm x 9400mm,
Weight approx. 4500kg



No. of items: 1

Dismantling and loading on truck not included.
