Home Torno cnc - 4 metros - "CAZENUEVE", Modelo: HBCN 800 Torno cnc - 4 metros - Online auction

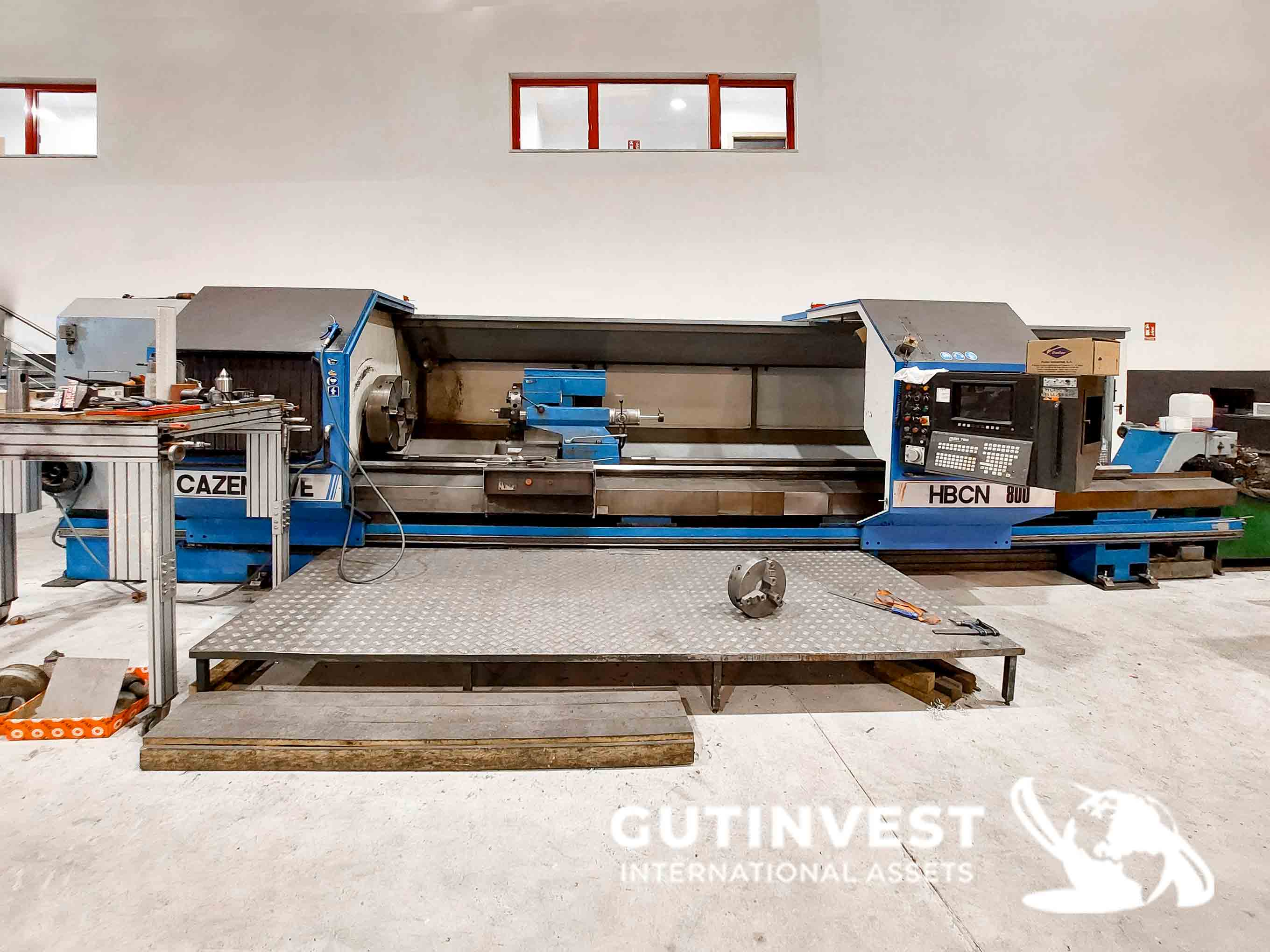

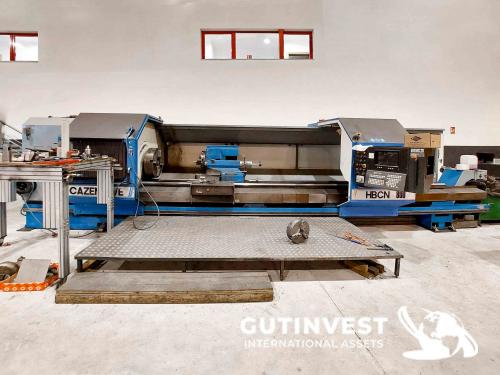

1 - CNC lathe - 4 meters

Tender sale

Start price

11.000 €

Categories

Share this bid

Insert your maximum bid here (sales commission and VAT not included)

Manufacturer

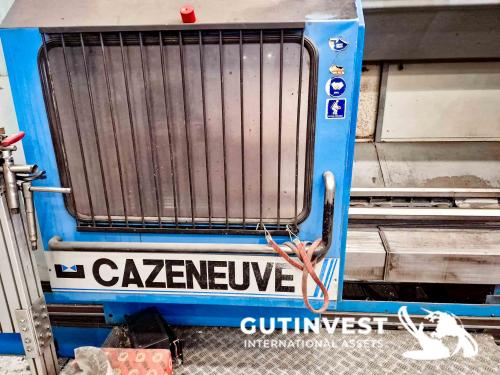

CAZENUEVE
Model
HBCN 800
Year
1990
Observations

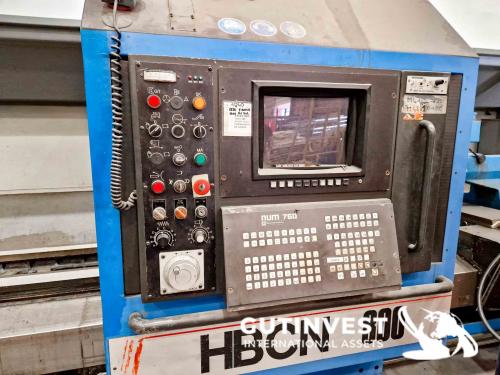

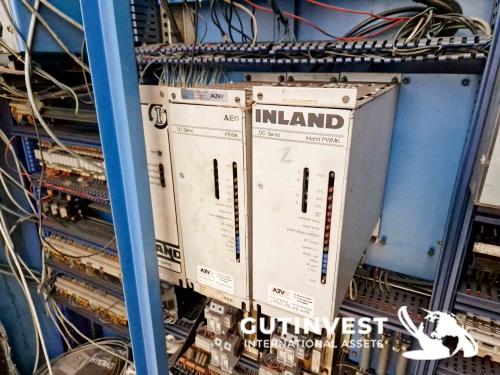

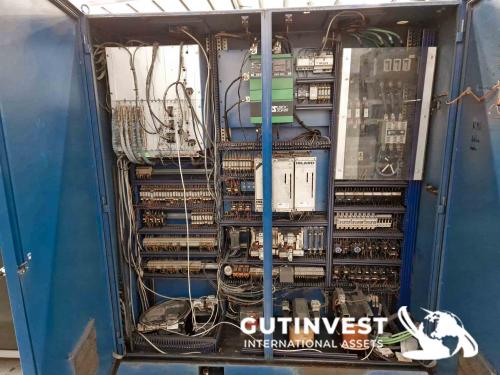

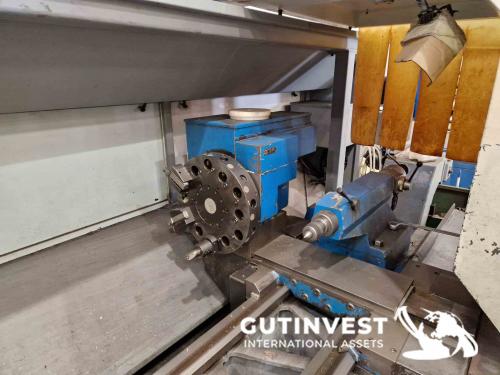

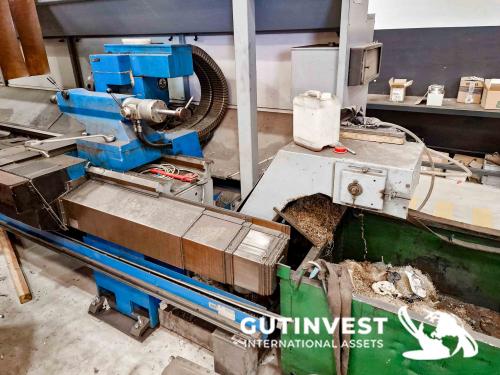

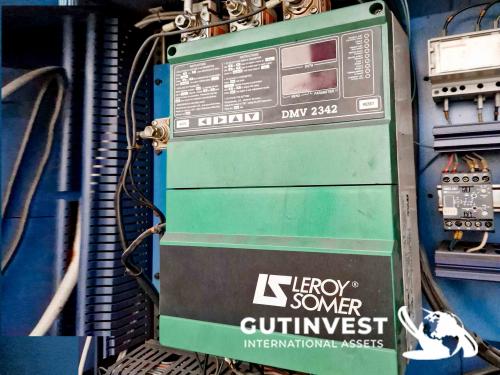

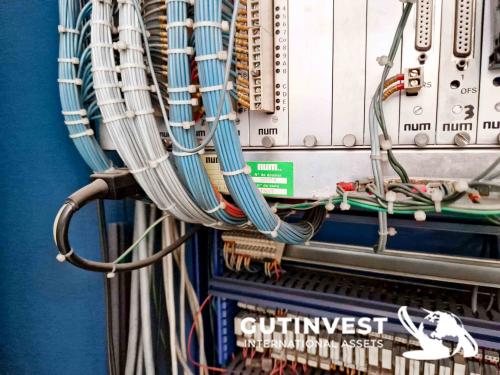

CNC lathe - 4 meters.  Max. turning length: 4200mm. Max. turning diameter: 710 mm. Max. diameter allowed on bed: 490mm. Length between centers: 4300mm. CNC Type: NUM. Number of tools on the turret: 12. Rotation speed: 900 rpm. Power of the spindle motor: 56kW (Theoretical) Repair pending: Observations: Mechanically the Z axis is not fine, it is not possible to turn a cylinder and leave it homogeneous in the measurement, the tool oscillates and varies the measurement by a few tenths. In addition, the Leroy Somer variator that appears in some photos is damaged, so the torque of the turntable cannot be controlled and the lathe loses power quickly. The electronics are the original, very old. It is possible to connect to the lathe by cable using RS-232 serial protocol.

No. of items: 1

Dismantling and loading costs not included.
