Lot 1

1 - Plastic injection molding machine - 550Tn

Online Auctions

Categories

Share this bid

Manufacturer
VICTOR (Taiwan)
Model
EU-550
Year
2000
Observations

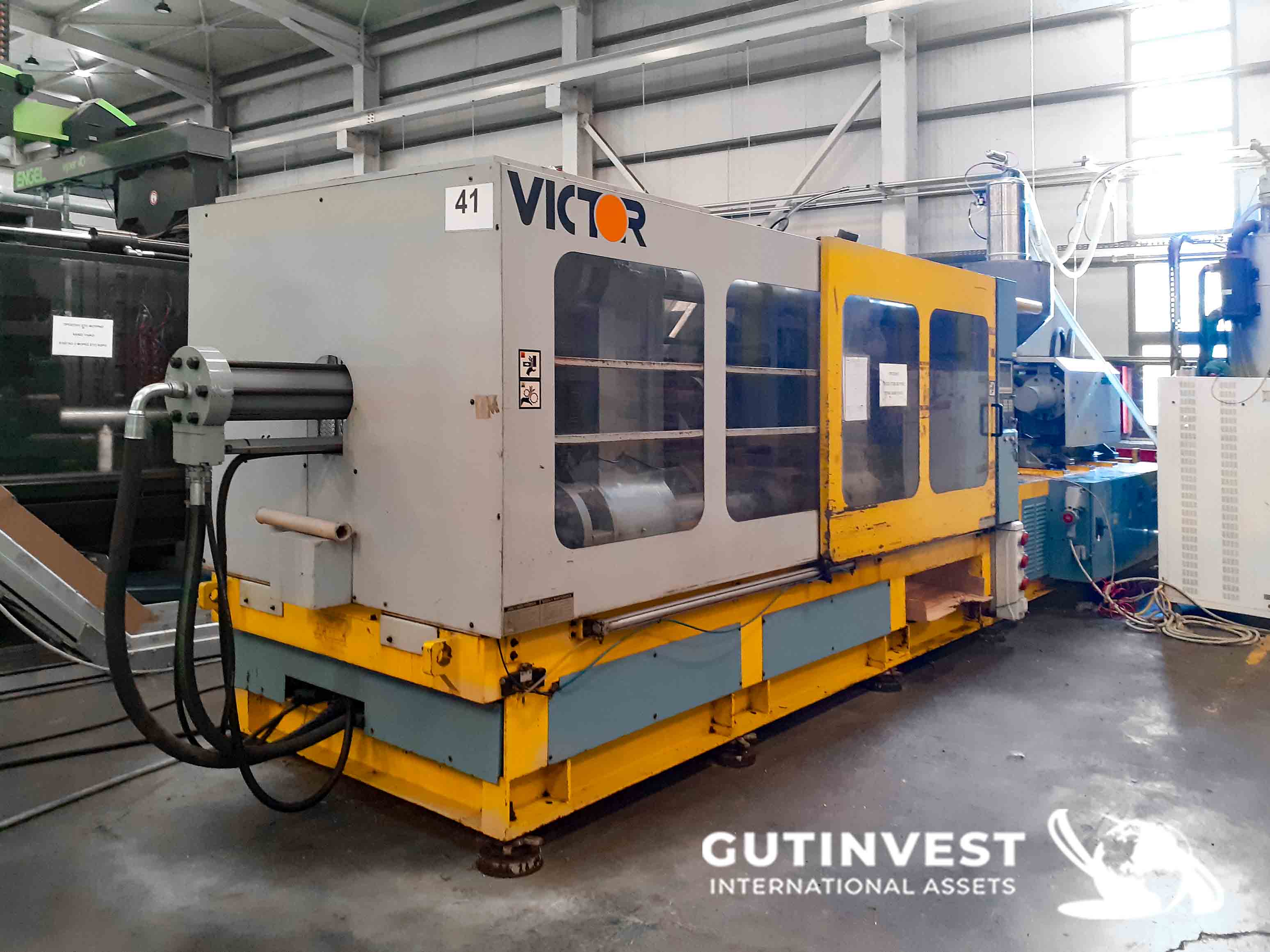

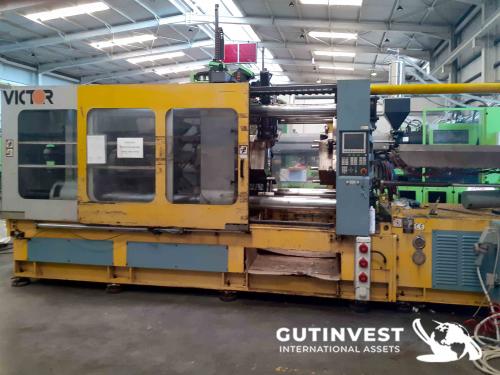

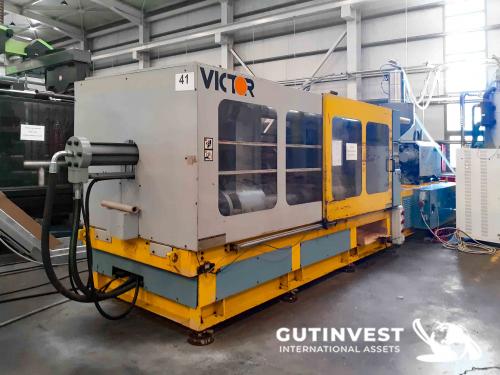

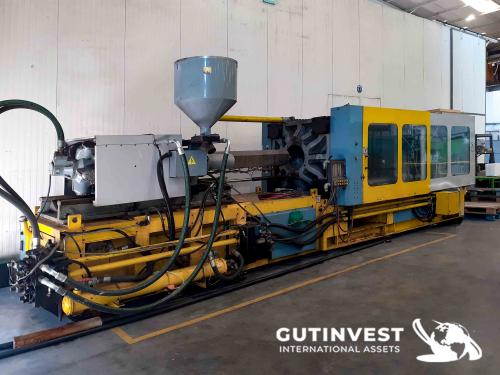

Plastic injection molding machine:
·Clamping Force: 550 ton
·Shot Weight (Max): 2802 g
·Platen Size (H): 850 mm
·Platen Size (V): 850 mm
·Screw Diameter: 100 mm
·Mould Thickness (Max): 950 mm
·Mould Thickness (Min): 300 mm
·Ejector Force: 11 ton
·Ejector Stroke: 220 mm
·Screw L/D Ratio: 18
·Screw Speed: 150 rpm
·Injection Volume: 3141 cm³
·Injection Pressure: 1261 bar
·Injection Rate: 654 cm³/s
·Nozzle Force (Max): 10.8 ton
·Nozzle Stroke (Max): 530 mm
·Plasticising Capacity: 138.89 g/s
·Heating Zones: 6
·Heating Capacity: 32 kW
·Oil Tank Capacity: 1100 l



No. of items: 1

Dismantling and loading costs included.
