1 - Wire EDM machine

Online Auctions

Categories

Share this bid

Manufacturer
ONA
Model
Prima S-400
Year
2000
Observations

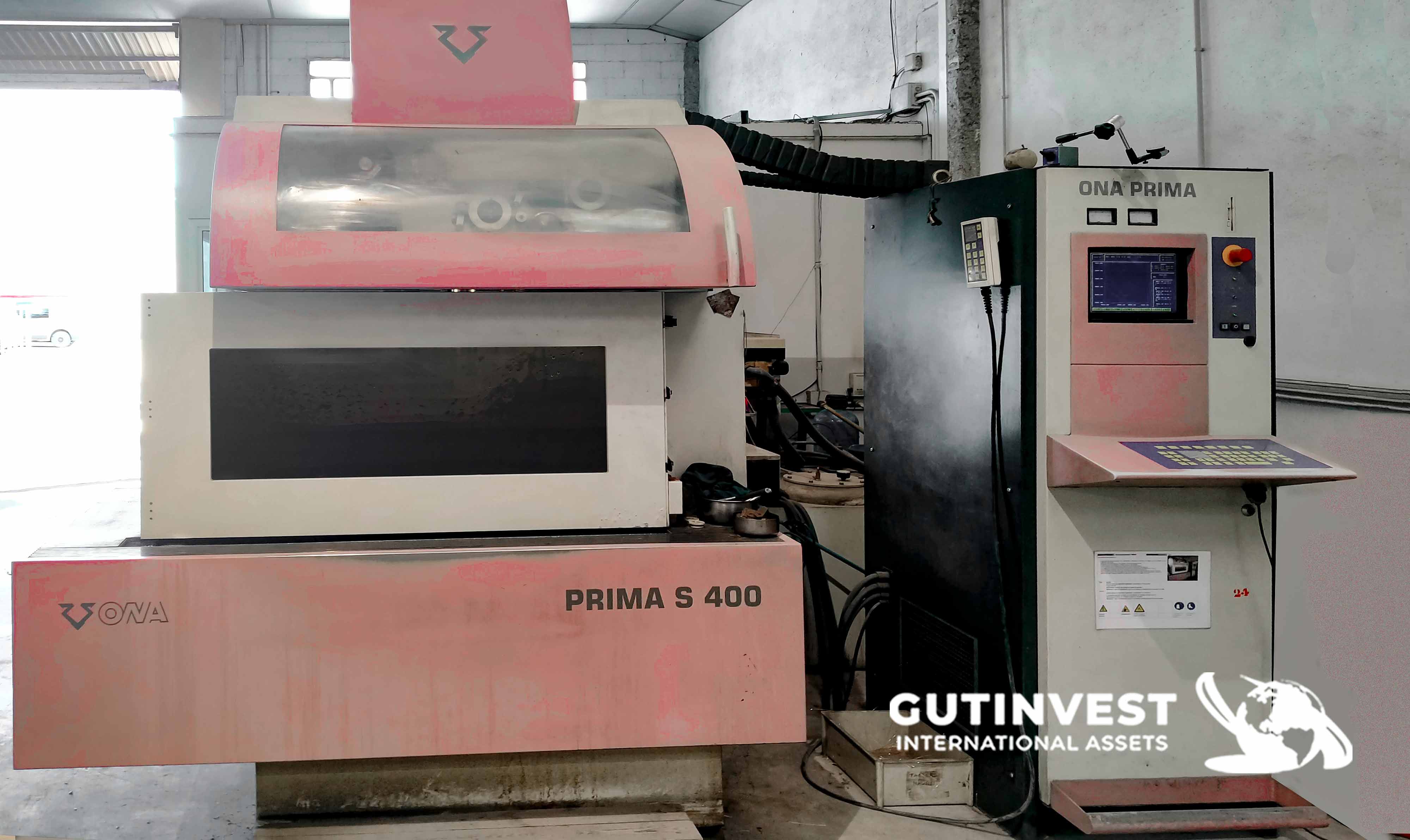

Wire EDM machine.
X/Y/Z axis stroke: 600 x 400 x 400 mm.
 U/V axis stroke: 80 x 80 mm.
Maximum part size: 1090 x 800 x 400 mm.
Max tilt angle: +/- 18 degrees / 100 mm (max +/- 30 degrees / 45 mm).
Table dimensions: 840 x 360 mm.
Wire diameter: 0.1-0.3 mm.
Power: 11kW, Machine weight: 3.200Kg.



No. of items: 1

Dismantling and loading costs not included.
