2 - Packaging line for aluminum bars

Online Auctions

Categories

Share this bid

Manufacturer
Messersi
Model
VR70
Year
2021
Observations

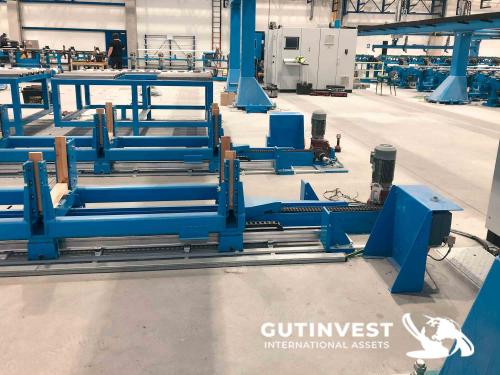

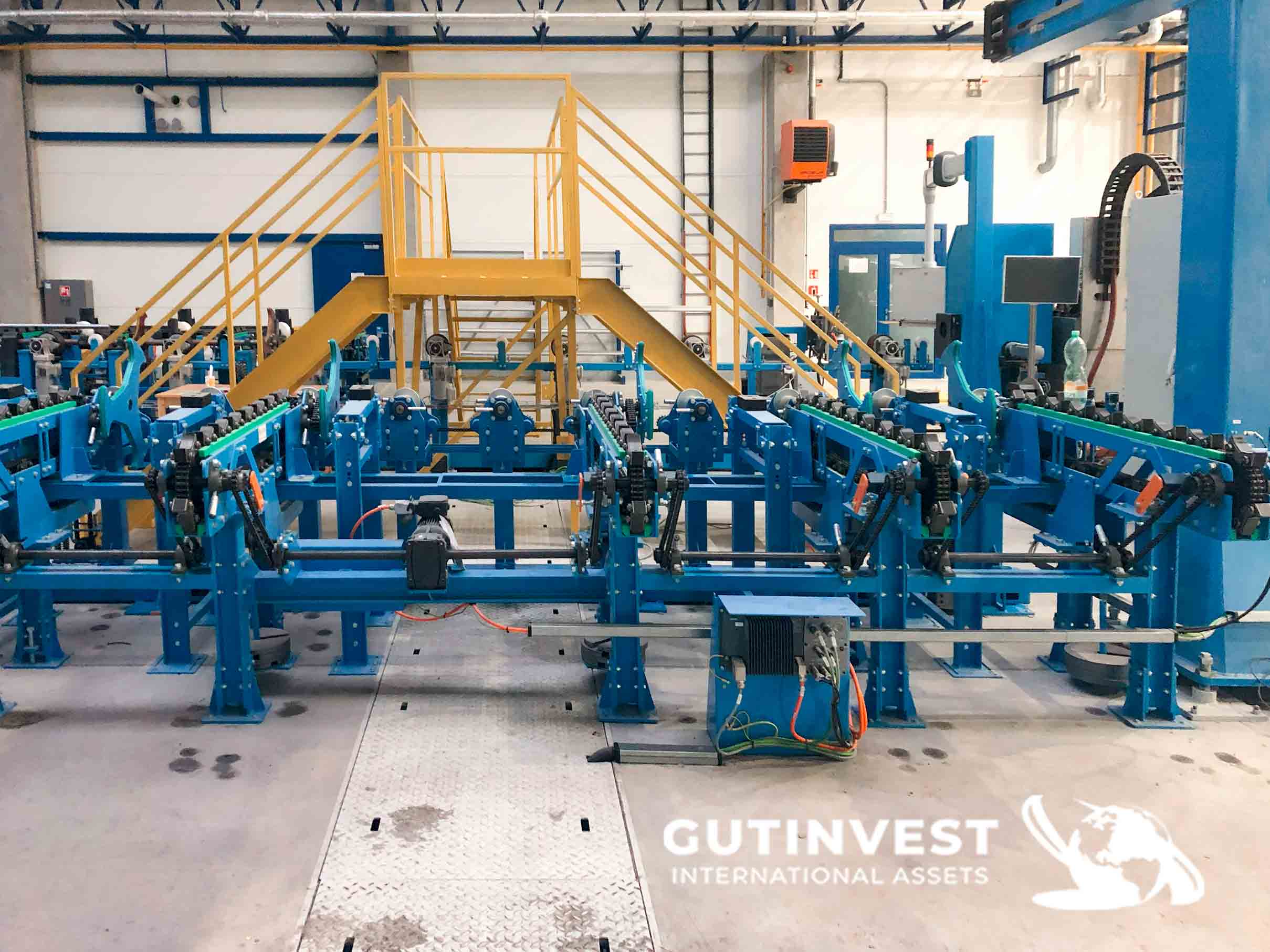

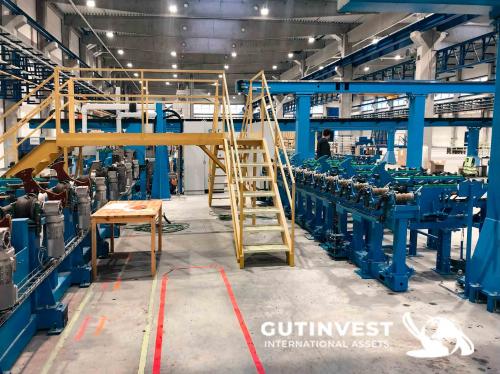

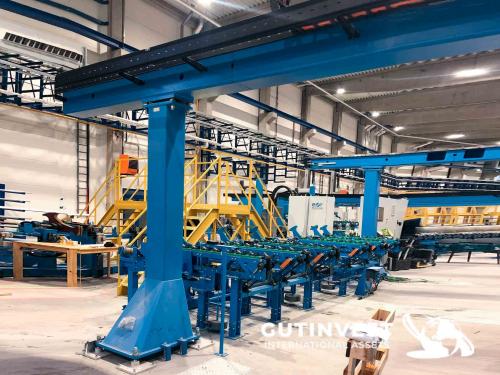

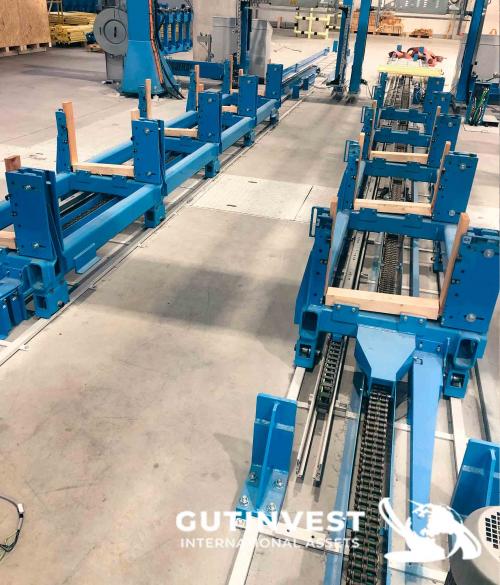

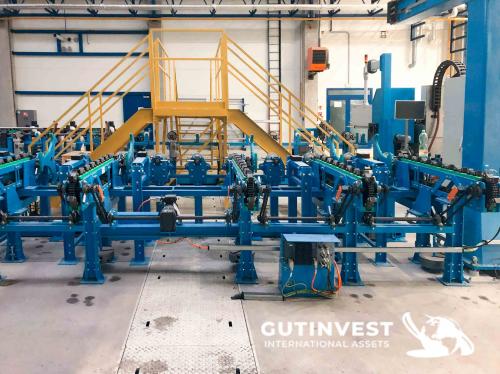

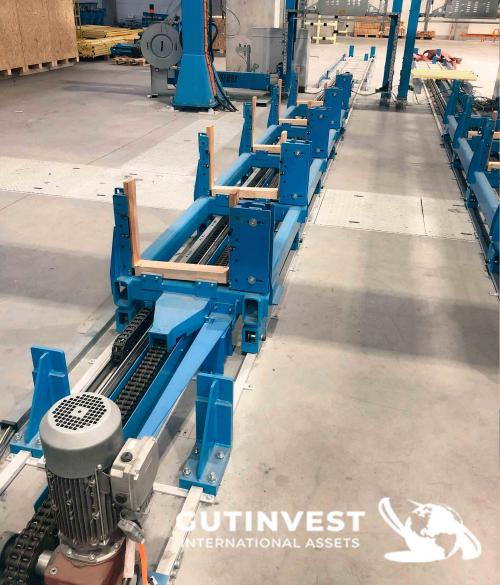

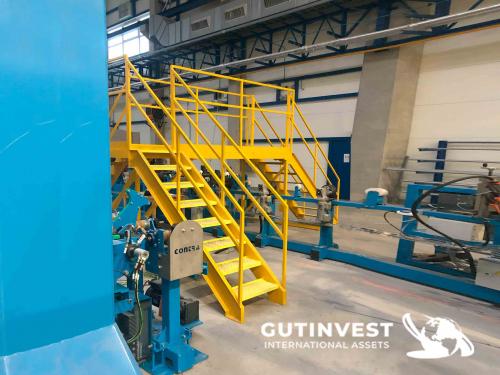

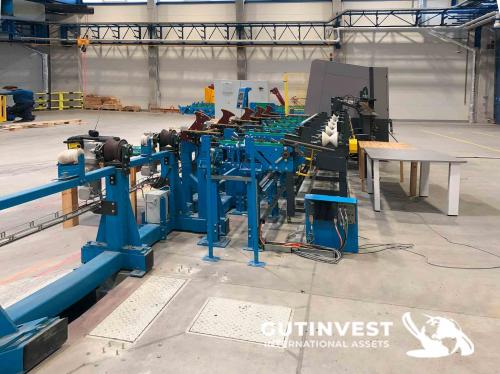

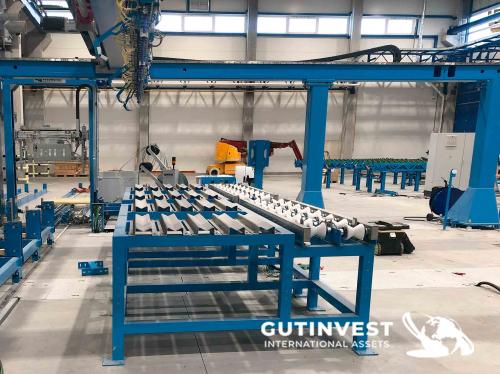

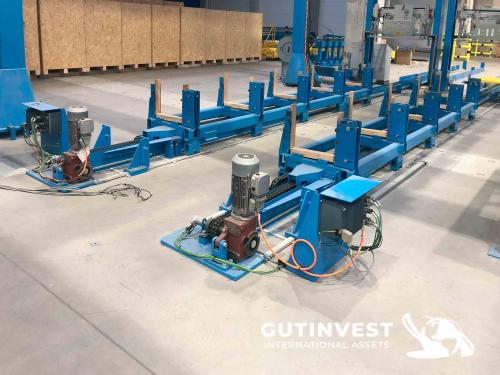

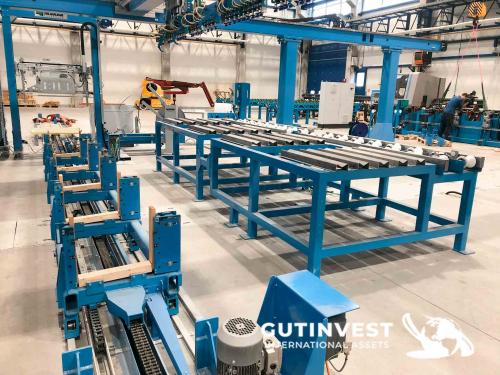

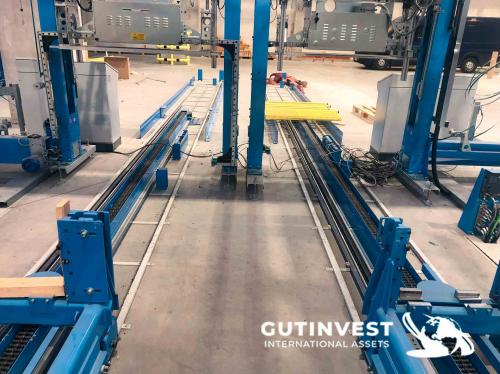

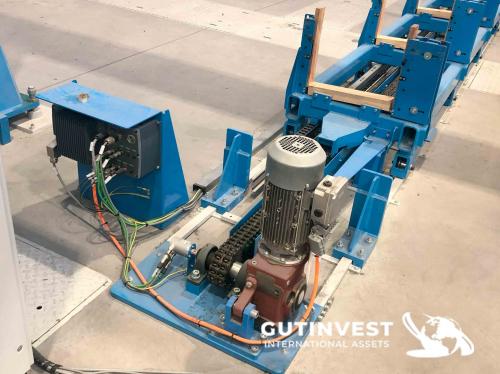

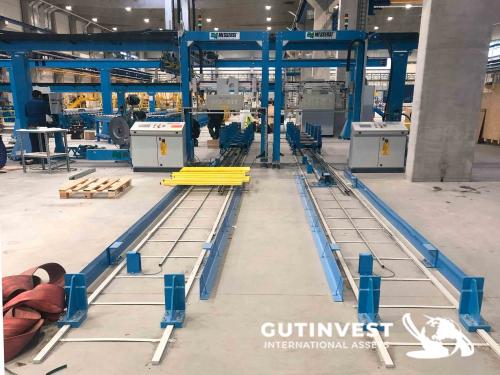

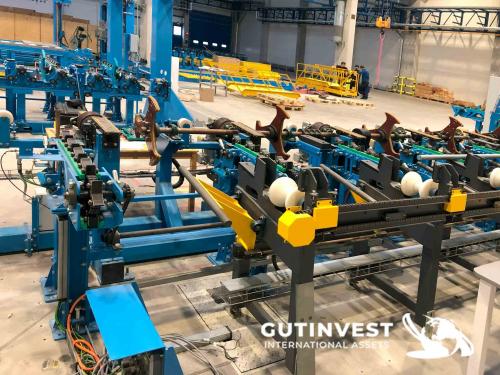

Packaging line for aluminum bars
Technical data of the strapping device:
- adjustable tightening force of the binding tape - maximum tightening force up to 7000N (aggregate MS700)
- adjustable weld cooling time (1 - 3s depending on tightening force and thickness of binding tape)
- material of the binding tape (PP - polypropylene or PET - polyester)
- tape width: 19 mm
- tape thickness: 0.5 - 1.27mm (PET) or 0.8 - 1.3mm (PP)
- speed of inserting the tape into the frame and pulling it out of the frame: 2.5 - 5.5 m/s
- tape tightening speed: 0.1 - 0.25 m/s
- Simatic S7-1200 control system
- three-color signaling beacon

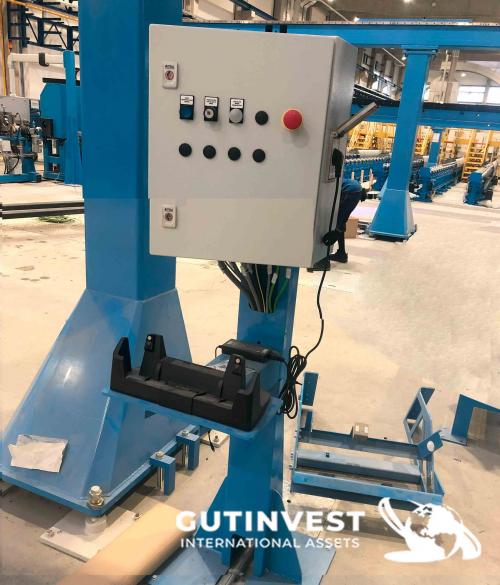

- free-standing electrical switchboard with control panel
- protective pneumatic locking device - head movement blocking in case of power failure
- tape tension leveling system
- safety optical sensor of passage


No. of items: 1

Dismantling and loading costs included.
