2 - 1200Tn plastic injection molding machine + robot

Online Auctions

Categories

Share this bid

Manufacturer
ENGEL
Model
ES 4550/1350H/1200K-2F
Year
1998
Observations

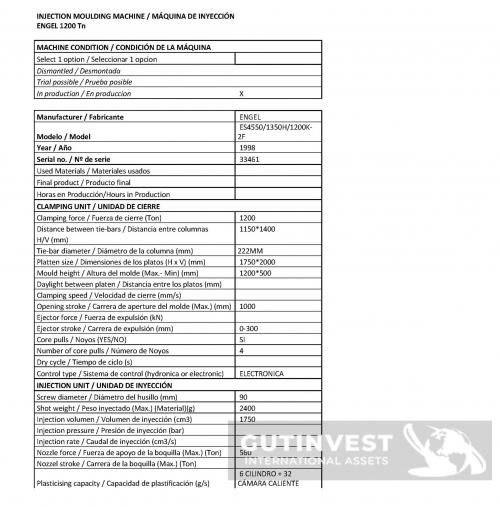

General characteristics:

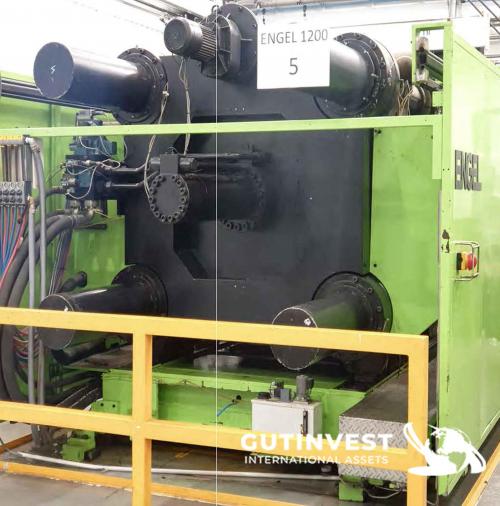

Closing Force: 1200 ton;
Injection Weight (Max): 2400 g;
Distance Between Columns (H): 1150 mm;
Distance Between Columns (V): 1400 mm;
Plate Dimensions (H): 1750 mm;
Plate Dimensions (V): 2000 mm; Spindle Diameter: 90 mm;

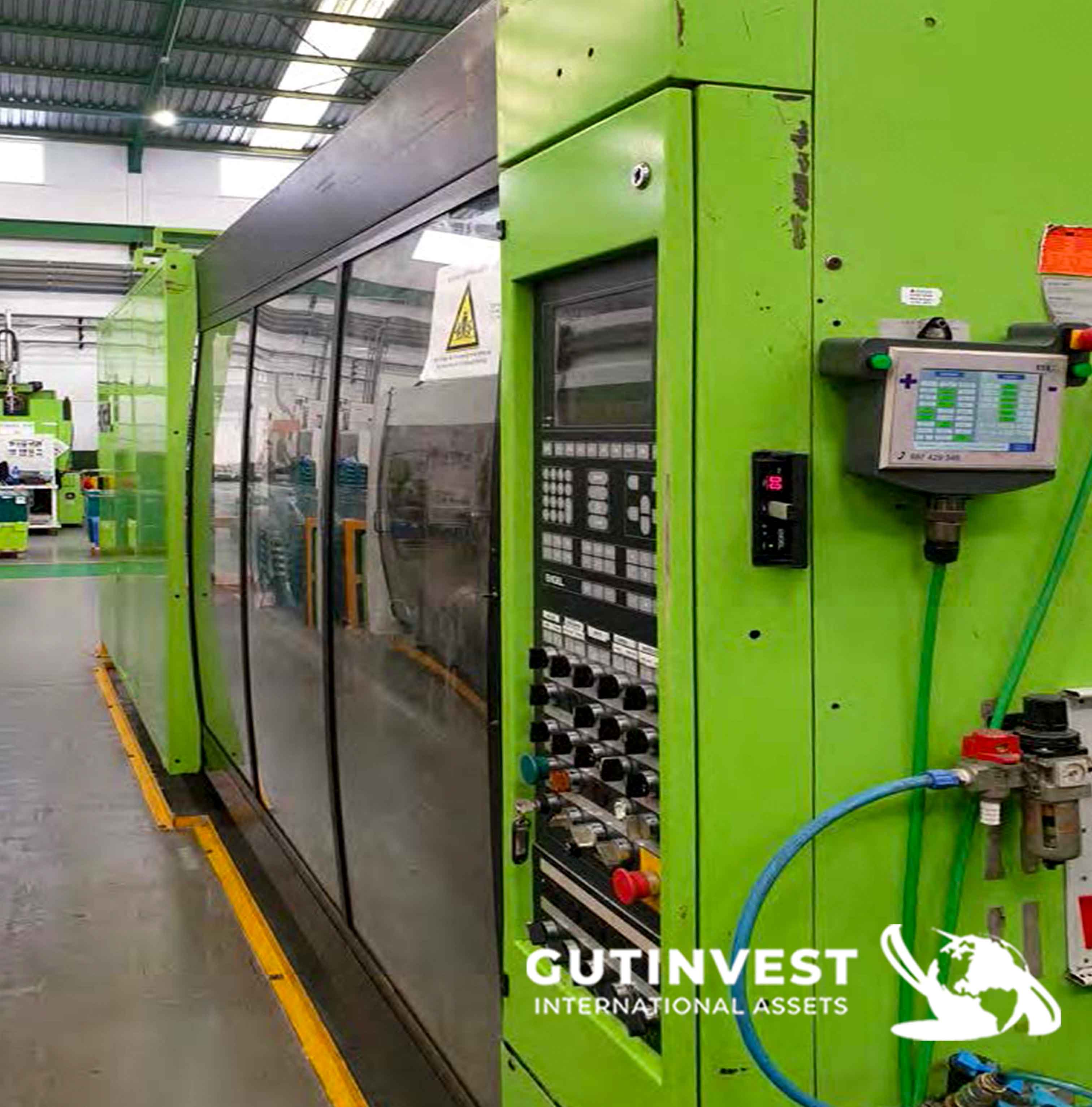

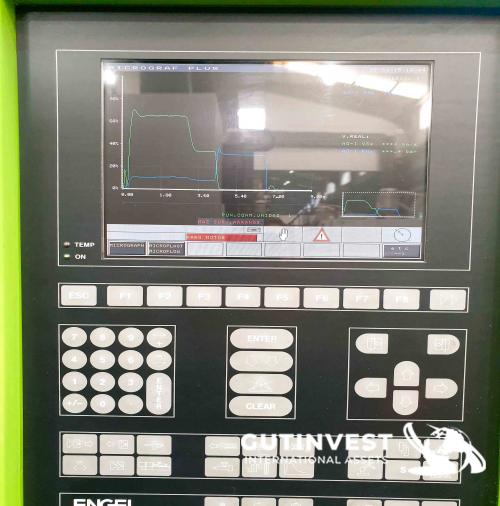

Control system:electronic;
Column Diameter: 222 mm;
Mold Height (Max): 1200 mm; Mold Opening Stroke (Max): 1000 mm; Ejection Stroke: 300 mm;

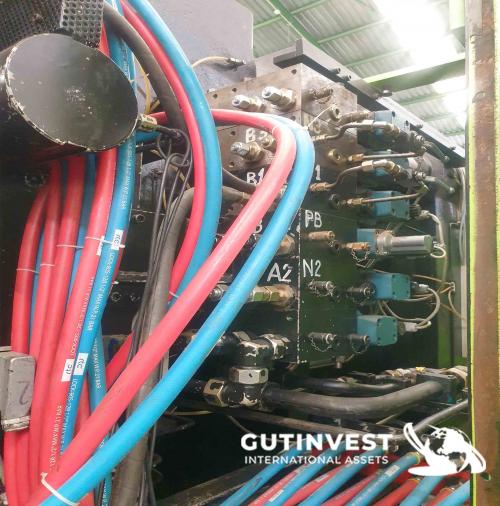

Noyos: Yes; Number Of Noyos: 4;

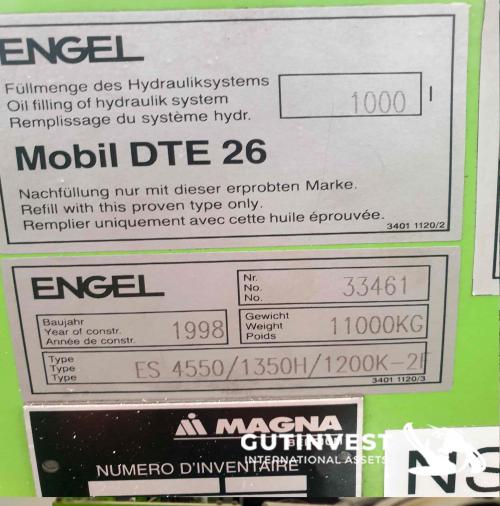

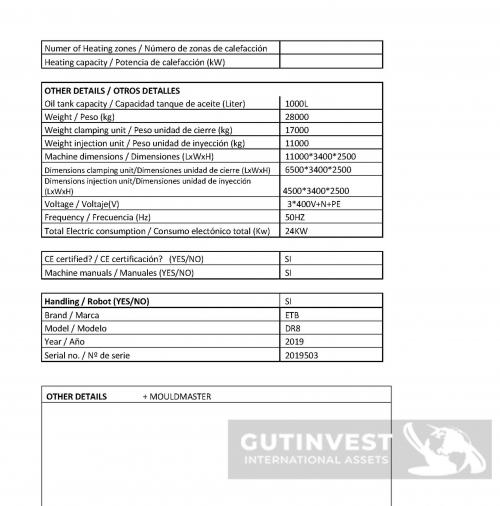

Oil Tank Capacity: 1000 l.;
Voltage: 400 V Three-phase; Frequency: 50 Hz;
Weight: 280000 kg; Weight unit closure: 17000 kg;
Injected unit weight 11000 kg;
Dimensions: (LxWxH): 6500*3400*2500*;
Closing unit dimensions (LxWxH): 6500*3400*2500;
Total electronic consumption 24Kw;
CE Certificate; Manuals available;

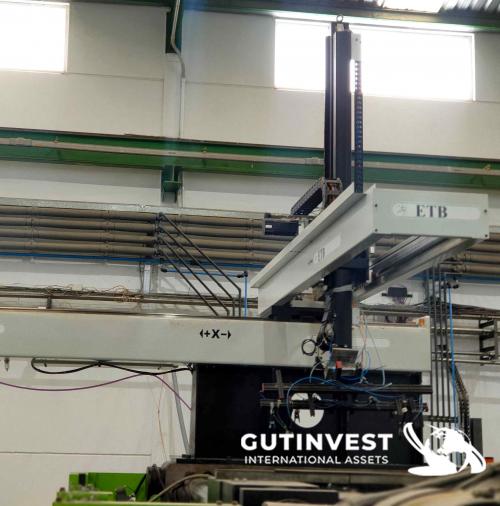

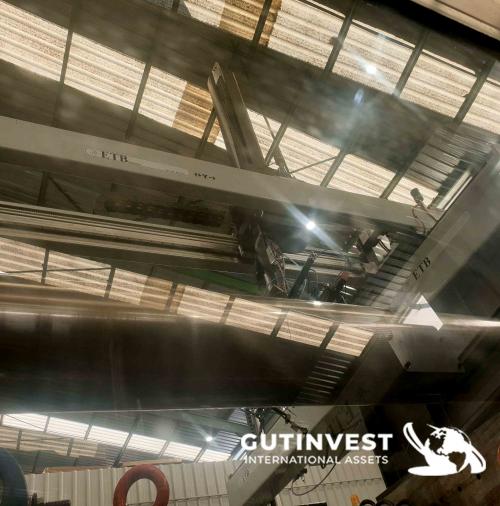

ETB Brand Robot; Model DR8; Year 2019; Num.series 2019503.


No. of items: 1

Dismantling and loading costs not included.
