Lot 3

Home Rectificadora - Soldadura y Afiladora "ISELI" Afiladora para hojas de sierra de madera - Online auction

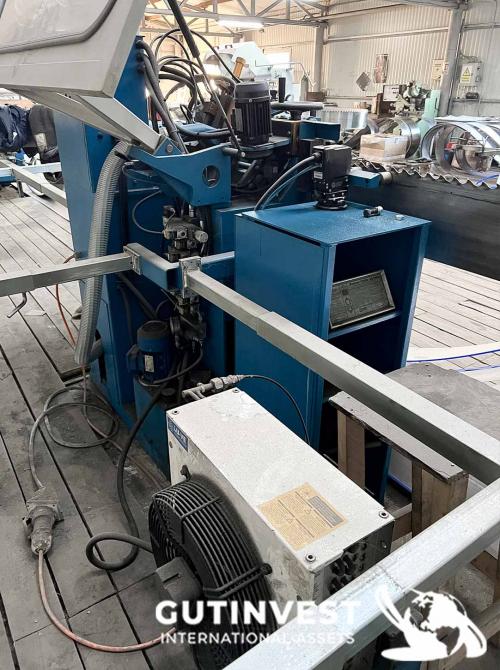

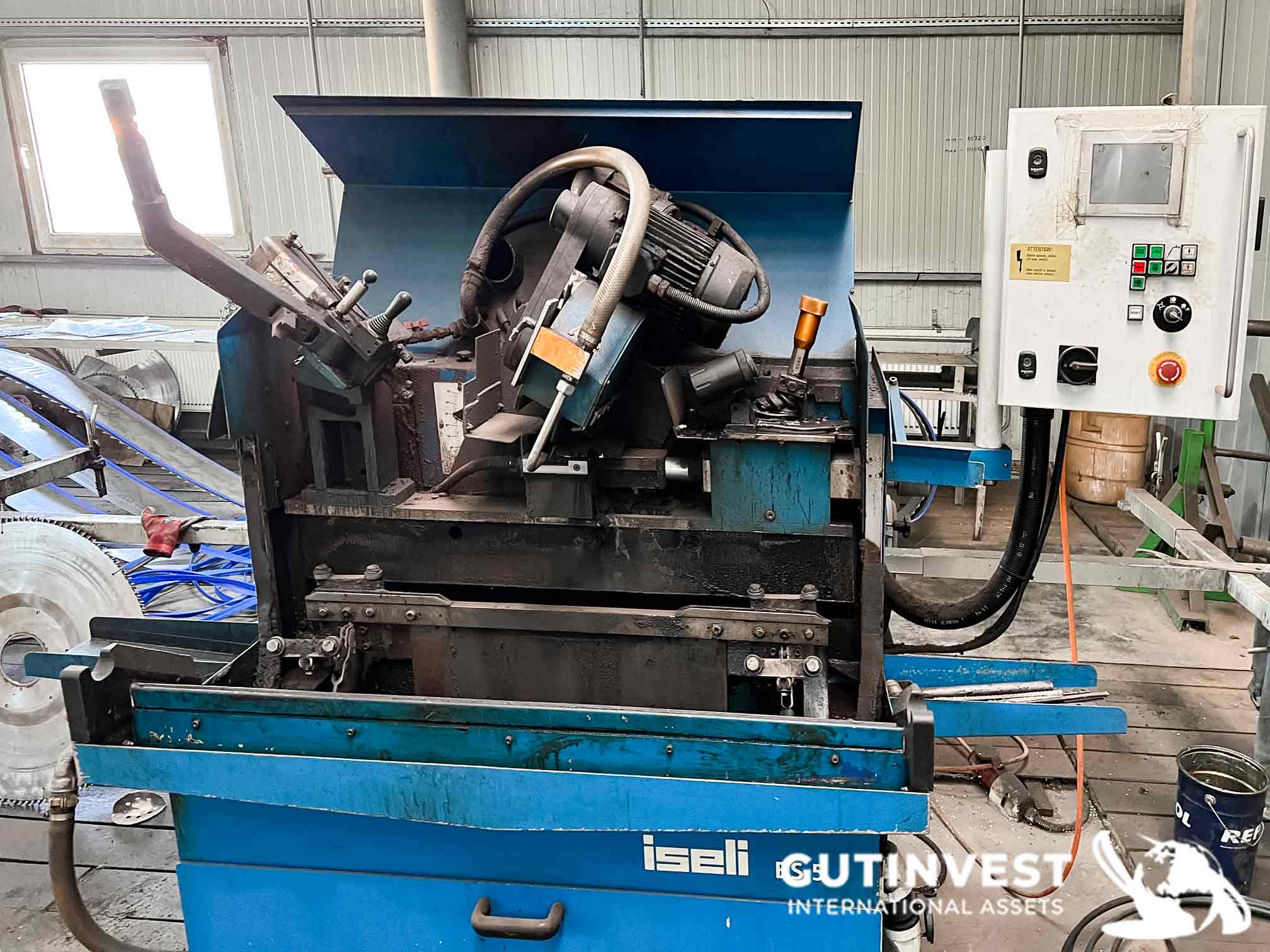

3 - Sharpening machine for band saw blades of wood

Tender sale

Start price

11.500 €

Categories

Share this bid

Insert your maximum bid here (sales commission and VAT not included)

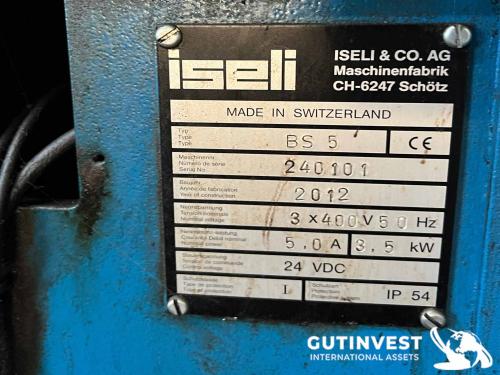

Manufacturer
ISELI
Model
BS 5
Year
2012
No. Series
240101
Observations
Sharpening machine for band saw blades of wood
Automatic sharpening machine for log band saw blades and band resawing blades.• Corundum grinding-wheel Diameter: 300 mm Bore diameter: 32 mm Width: 8/10/12 mm • CBN grinding-wheel Diameter: 250 mm Bore diameter: 25/32 mm Width: 6/10 mm • Single tooth shape cam or a bank of 3 cams • Tooth pitch: 25 to 60 mm • Tooth height: 6 to 20 mm • Front rake angle: 5 to 35° • Blade width: 60 to 360 mm • Blade length: 5'600 to 14'000 mm • Feeding speed with frequency converter: 10 to 40 teeth/min • Peripherical speed of grinding-wheel: 35 m/sec. with frequency converter: 25 to 60 m/sec. • Connected load: 3,0 kW approx. Compressed air supply: 6 bar • Weight of machine - without carrousel: 620 kg • Height of machine: 170 cm



No. of items: 1

Dismantling and loading costs not included.
