No. of sale: 011222M2
Starting date

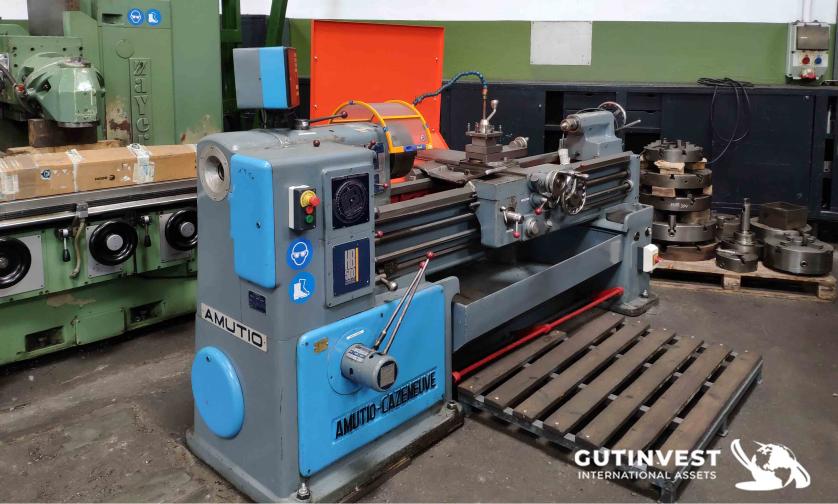

ManufacturerAMUTIO CAZENEUVE ModelHB 810 Year1973 ObservationsLathe 1.5 meters AMUTIO CAZENEUVE
FAGOR Display
Distance between points: 1,500 mm
Diameter allowed on bench: 810 mm
Diameter allowed on carriage: 770 mm
Diameter allowed on transverse carriage: 500 mm
Height of points: 365 mm
Inner diameter of head shaft: 81 mm
Bed width: 505 mm
Maximum course of the transverse carriage: 400 mm
Maximum course of the steerable trolley: 220 mm
Maximum course of the counterpoint gun: 235 mm
Number of head shaft speeds: 18
Motor power: 20 hp
Head shaft speeds: 20 to 1600 rpm
Machine dimensions: 3140 x 1270 x 1405mm
Machine weight: 3200kg CE regulations
Accessories: shoes and springs
Spare 3-support window (diameter: 300mm);Two 3-claw plates (310mm diameter), and one 4-claw plate (400mm diameter)
ManufacturerAMUTIO CAZENEUVE ModelHB 810 Year1973 ObservationsLathe 1.5 meters AMUTIO CAZENEUVE
FAGOR Display
Distance between points: 1,500 mm
Diameter allowed on bench: 810 mm
Diameter allowed on carriage: 770 mm
Diameter allowed on transverse carriage: 500 mm
Height of points: 365 mm
Inner diameter of head shaft: 81 mm
Bed width: 505 mm
Maximum course of the transverse carriage: 400 mm
Maximum course of the steerable trolley: 220 mm
Maximum course of the counterpoint gun: 235 mm
Number of head shaft speeds: 18
Motor power: 20 hp
Head shaft speeds: 20 to 1600 rpm
Machine dimensions: 3140 x 1270 x 1405mm
Machine weight: 3200kg CE regulations
Accessories: shoes and springs
Spare 3-support window (diameter: 300mm);Two 3-claw plates (310mm diameter), and one 4-claw plate (400mm diameter)
Start price 17.000 €

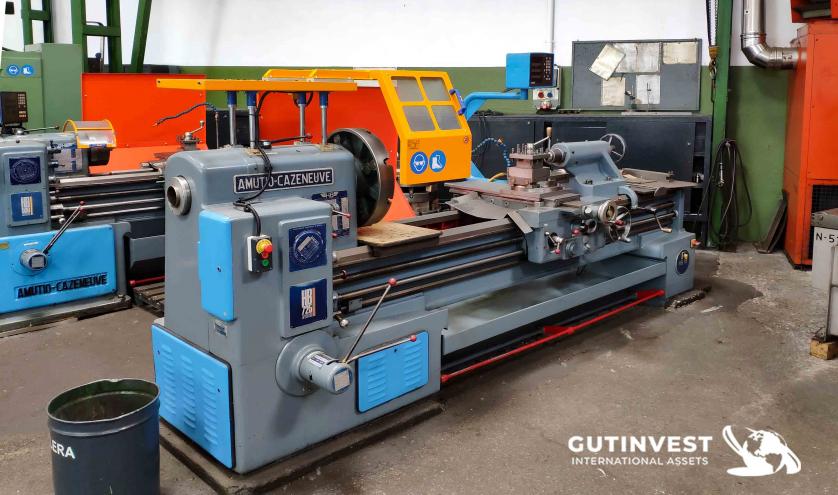

ManufacturerAMUTIO CAZENEUVE ModelHB 725 Year1973 ObservationsLathe - 1.9 meters.
FAGOR Display
Distance between points: 1,900 mm
Diameter allowed on bench: 725 mm
Diameter allowed on carriage: 670 mm
Diameter allowed on transverse carriage: 400 mm
Height of points: 315 mm
Inner diameter of head shaft: 81 mm
Bed width: 505 mm
Maximum course of the transverse carriage: 400 mm
Maximum steerable trolley course: 220 mm
Maximum course of counterpoint gun: 235 mm
Number of head shaft speeds: 18
Motor power: 20 hp
Head shaft speeds: 20 to 1600 rpm
Machine dimensions: 3640 x 1270 x 1405mm
Machine weight 3.100kg
Spare parts: clamping guide
Meets CE regulatory requirements
ManufacturerAMUTIO CAZENEUVE ModelHB 725 Year1973 ObservationsLathe - 1.9 meters.
FAGOR Display
Distance between points: 1,900 mm
Diameter allowed on bench: 725 mm
Diameter allowed on carriage: 670 mm
Diameter allowed on transverse carriage: 400 mm
Height of points: 315 mm
Inner diameter of head shaft: 81 mm
Bed width: 505 mm
Maximum course of the transverse carriage: 400 mm
Maximum steerable trolley course: 220 mm
Maximum course of counterpoint gun: 235 mm
Number of head shaft speeds: 18
Motor power: 20 hp
Head shaft speeds: 20 to 1600 rpm
Machine dimensions: 3640 x 1270 x 1405mm
Machine weight 3.100kg
Spare parts: clamping guide
Meets CE regulatory requirements
Start price 17.000 €
Manufacturer AMUTIO CAZENEUVE ModelHB 500 Year1973 ObservationsLathe 1.5 meters -AMUTIO CAZENEUVE.
Display: FAGOR
Distance between points: 1500mm.
Diameter allowed on bench: 500mm.
Diameter allowed on carriage: 448mm.
Diameter allowed s/transverse carriage: 220mm.
Height of points: 200mm.
Inner diameter of the head shaft: 40.5mm.
Head shaft cone: CM-5 Counterpoint cone: CM-5
Bed width: 400mm.
Maximum course of the transverse carriage: 280mm.
Maximum course of the adjustable trolley: 140mm.
Number of head shaft speeds: 18.
Power of the engine CV: 12.5 hp.
Machine dimensions: 2905x1175x1295mm.
Machine weight: 1.950Kgs.
Equipped with universal plate and two lunettes.
CE Certified
Manufacturer AMUTIO CAZENEUVE ModelHB 500 Year1973 ObservationsLathe 1.5 meters -AMUTIO CAZENEUVE.
Display: FAGOR
Distance between points: 1500mm.
Diameter allowed on bench: 500mm.
Diameter allowed on carriage: 448mm.
Diameter allowed s/transverse carriage: 220mm.
Height of points: 200mm.
Inner diameter of the head shaft: 40.5mm.
Head shaft cone: CM-5 Counterpoint cone: CM-5
Bed width: 400mm.
Maximum course of the transverse carriage: 280mm.
Maximum course of the adjustable trolley: 140mm.
Number of head shaft speeds: 18.
Power of the engine CV: 12.5 hp.
Machine dimensions: 2905x1175x1295mm.
Machine weight: 1.950Kgs.
Equipped with universal plate and two lunettes.
CE Certified
Start price 12.000 €
