CNC Vertical Turning and Grinding Center EMAG/ VSC 400 DDS

No. of sale: 020425M

Starting date
16/02/2025 16:00:00
Closing Date
02/04/2025 16:00:00
Viewing days
by appointment
Location
Germany

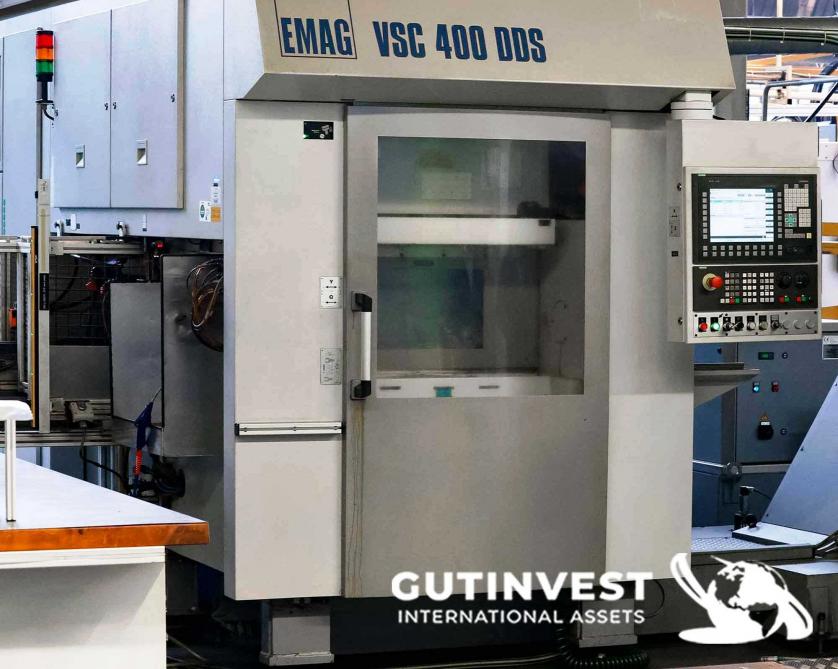

Direct sale of CNC Vertical Turning and Grinding Center EMAG/ VSC 400 DDS (2006) in good condition
Payment methods

Manufacturer
EMAG
Model
VSC 400 DDS
Year
2006
Observations
Vertical Turning and Grinding Center
Chuck diameter max.: 400mm. Swing diameter max. incl. dressing tool: 420 mm. X-travel: 850mm. Y-travel: 315mm, Z-travel: 315mm. Main spindle: Spindle flange DIN 55 026 size 11, Spindle bearing, front Ø in 140mm, Speed max. 3.000 rpm. Main drive: Power max.: 58kW. Turning and grinding unit: Turning tools / Lifetools number: 1 - 12. Tool holders cylindrical shank Ø : 40 - 50mm. Number of grinding spindles 1 - 2. Numerical control: Siemens 840D. Nominal Operating Voltage:3~400V. Frequency: 50Hz. Working Voltage: 430V. Control Voltage:
230V General/24V for Valves. Weight: 13.000Kg.


Start price 55.000 €

Manufacturer
EMAG
Model
VSC 400 DDS
Year
2006
Observations
Vertical Turning and Grinding Center
Chuck diameter max.: 400mm. Swing diameter max. incl. dressing tool: 420 mm. X-travel: 850mm. Y-travel: 315mm, Z-travel: 315mm. Main spindle: Spindle flange DIN 55 026 size 11, Spindle bearing, front Ø in 140mm, Speed max. 3.000 rpm. Main drive: Power max.: 58kW. Turning and grinding unit: Turning tools / Lifetools number: 1 - 12. Tool holders cylindrical shank Ø : 40 - 50mm. Number of grinding spindles 1 - 2. Numerical control: Siemens 840D. Nominal Operating Voltage:3~400V. Frequency: 50Hz. Working Voltage: 430V. Control Voltage:
230V General/24V for Valves. Weight: 13.000Kg.


Start price 55.000 €

1  -  Vertical Turning and Grinding Center
55.000 €
