No. of sale: 041023P
Starting date

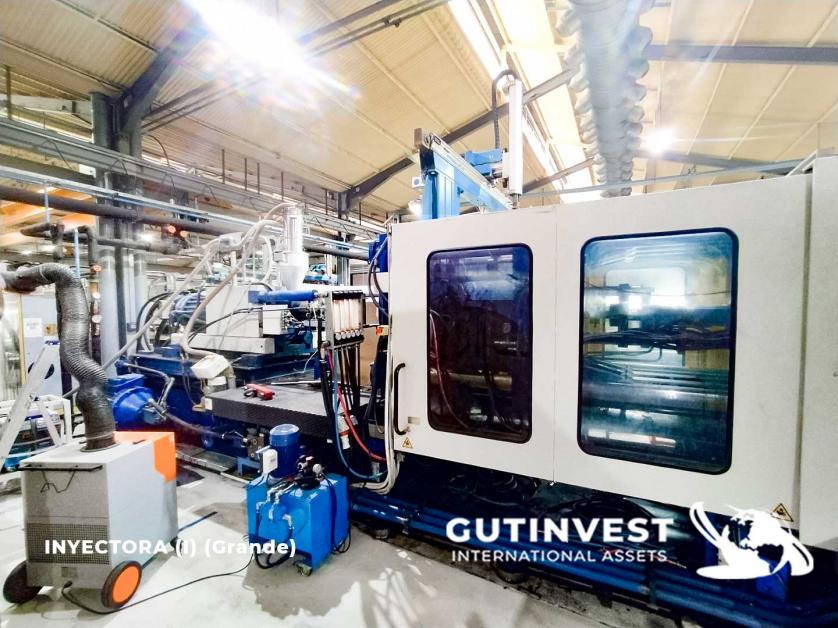

ManufacturerMateu y Solé SA ModelMeteor 4850/650 Year2001 ObservationsPlastic Injection machine - 650Tn
WITH SERVO DOUBLE KNEE BRACE SYSTEM
Includes:
Robot Bridge SYTRAMA Mod. RV101 and conveyor.
Desuperheater
Dehumidifier
Scale
CHARACTERISTICS
INJECTION UNIT
Spindle diameter mm 80
Spindle L/D ratio 24
Maximum injection pressure bar 2140
Theoretical injection volume cm3 2260
Maximum injection weight (PS) g 2045
Injection flow rate cm3/s 454
Plasticizing capacity g/s 140
Spindle speed adjustable min-1 147
Spindle turning torque Nm 6294
Heating zones nº 5 + 1
Heating power kW 42
Maximum support force nozzle kN 162
Maximum nozzle stroke mm 650
Mold thickness mm 300 - 900
Closing unit
Plate dimensions H x V mm 1360 x 1360
Passage between columns H x V mm 900 x 900
Force kN (Tm) 6500 (650)
Maximum distance between plates mm 1825
Maximum opening stroke mm 925
Column diameter mm 170
Maximum ejection force kN 184
Maximum ejection stroke mm 350
GENERAL CHARACTERISTICS
Idle cycles (Euromap 6a) min-1 13
Servo motor power kW (HP) 75 (100)
Total installed power kW 117
Oil tank capacity L 800
Machine net weight kg 38000
Working hours 81.700h
ManufacturerMateu y Solé SA ModelMeteor 4850/650 Year2001 ObservationsPlastic Injection machine - 650Tn
WITH SERVO DOUBLE KNEE BRACE SYSTEM
Includes:
Robot Bridge SYTRAMA Mod. RV101 and conveyor.
Desuperheater
Dehumidifier
Scale
CHARACTERISTICS
INJECTION UNIT
Spindle diameter mm 80
Spindle L/D ratio 24
Maximum injection pressure bar 2140
Theoretical injection volume cm3 2260
Maximum injection weight (PS) g 2045
Injection flow rate cm3/s 454
Plasticizing capacity g/s 140
Spindle speed adjustable min-1 147
Spindle turning torque Nm 6294
Heating zones nº 5 + 1
Heating power kW 42
Maximum support force nozzle kN 162
Maximum nozzle stroke mm 650
Mold thickness mm 300 - 900
Closing unit
Plate dimensions H x V mm 1360 x 1360
Passage between columns H x V mm 900 x 900
Force kN (Tm) 6500 (650)
Maximum distance between plates mm 1825
Maximum opening stroke mm 925
Column diameter mm 170
Maximum ejection force kN 184
Maximum ejection stroke mm 350
GENERAL CHARACTERISTICS
Idle cycles (Euromap 6a) min-1 13
Servo motor power kW (HP) 75 (100)
Total installed power kW 117
Oil tank capacity L 800
Machine net weight kg 38000
Working hours 81.700h
Start price 55.000 €
