No. of sale: 051023M
Starting date
ManufacturerTerenzio ModelDouble Press 150Tn Year2003 ObservationsDOUBLE HYDRAULIC PRESS (2 UNITS) - 150 TNS
TECHNICAL CHARACTERISTICS (IDENTICAL ON BOTH PRESSES)
CLOSING GROUP
Closing force kN 1500
Mould opening force kN 335
Moving surface stroke mm 900 max.
Light between levels mm 1600
Flat working height from the ground mm 800 minimum
Mold height mm 700
Maximum mold diameter mm 3000 x 1300
Maximum weight average upper mold 7.2 tons.
Side passage mm 1100x1500
Fast descent speed mm/sec 600
Working speed up to 50% max. Force mm/sec 80
Speed. From work to strength max. Mm/sec 40
Speed. Output mm/sec 380
WORK TABLES
Dimensions mm 3000x1400
Wheelbase ’T’ mm 192
Screw type 'T' mm m20

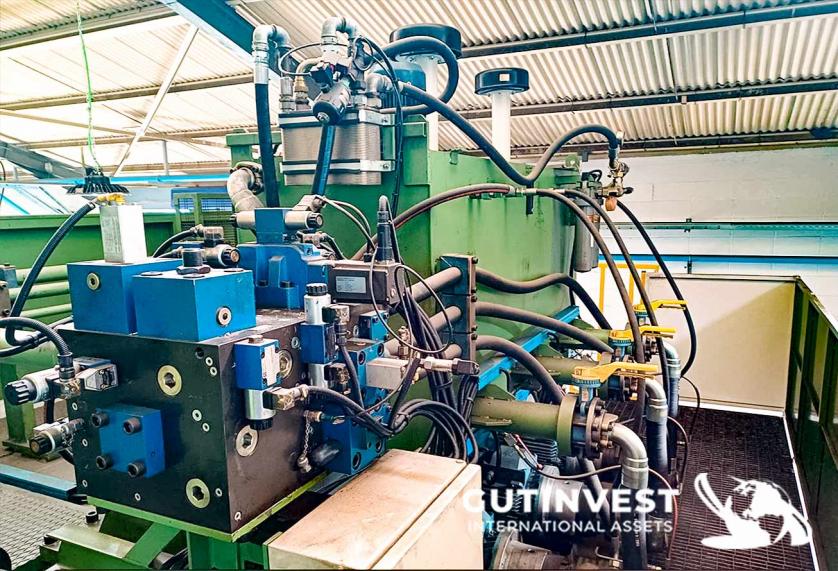

HIDRAULIC SYSTEM
Maximum operating pressure bar 192
Number of hydraulic motor pumps 3
Maximum flow of each pump (at 192bar pressure) l/min 70
Maximum flow pump "SITEMA" and oil filtration l/min 12 + 100
Maximum flow rate oil cooled pump l/min 40
Tank capacity 1280 liters
Hydraulic oil ARNICA agip 46
Hydraulic pump motor power kW 22
Pump power of the engine "SITEMA" and oil filtration kW 3
Cooling motor power pump of oil kW 1,45
Total weight approx.: 60 tons.
ManufacturerTerenzio ModelDouble Press 150Tn Year2003 ObservationsDOUBLE HYDRAULIC PRESS (2 UNITS) - 150 TNS
TECHNICAL CHARACTERISTICS (IDENTICAL ON BOTH PRESSES)
CLOSING GROUP
Closing force kN 1500
Mould opening force kN 335
Moving surface stroke mm 900 max.
Light between levels mm 1600
Flat working height from the ground mm 800 minimum
Mold height mm 700
Maximum mold diameter mm 3000 x 1300
Maximum weight average upper mold 7.2 tons.
Side passage mm 1100x1500
Fast descent speed mm/sec 600
Working speed up to 50% max. Force mm/sec 80
Speed. From work to strength max. Mm/sec 40
Speed. Output mm/sec 380
WORK TABLES
Dimensions mm 3000x1400
Wheelbase ’T’ mm 192
Screw type 'T' mm m20
HIDRAULIC SYSTEM
Maximum operating pressure bar 192
Number of hydraulic motor pumps 3
Maximum flow of each pump (at 192bar pressure) l/min 70
Maximum flow pump "SITEMA" and oil filtration l/min 12 + 100
Maximum flow rate oil cooled pump l/min 40
Tank capacity 1280 liters
Hydraulic oil ARNICA agip 46
Hydraulic pump motor power kW 22
Pump power of the engine "SITEMA" and oil filtration kW 3
Cooling motor power pump of oil kW 1,45
Total weight approx.: 60 tons.
Start price 65.000 €
