(X3) Spindle automatic lathes - TRAUB- TEIXIDO-UNAMUNO

No. of sale: 070324M

Starting date
24/01/2024 16:00:00
Closing Date
24/07/2024 16:00:00
Viewing days
by appointment
Location
Spain
Direct sale of three automatic cam lathes for the turning of automotive, aerospace and energy parts. Completely rebuilt "Unamuno", "Traub" and "Teixido", in good condition.
Payment methods

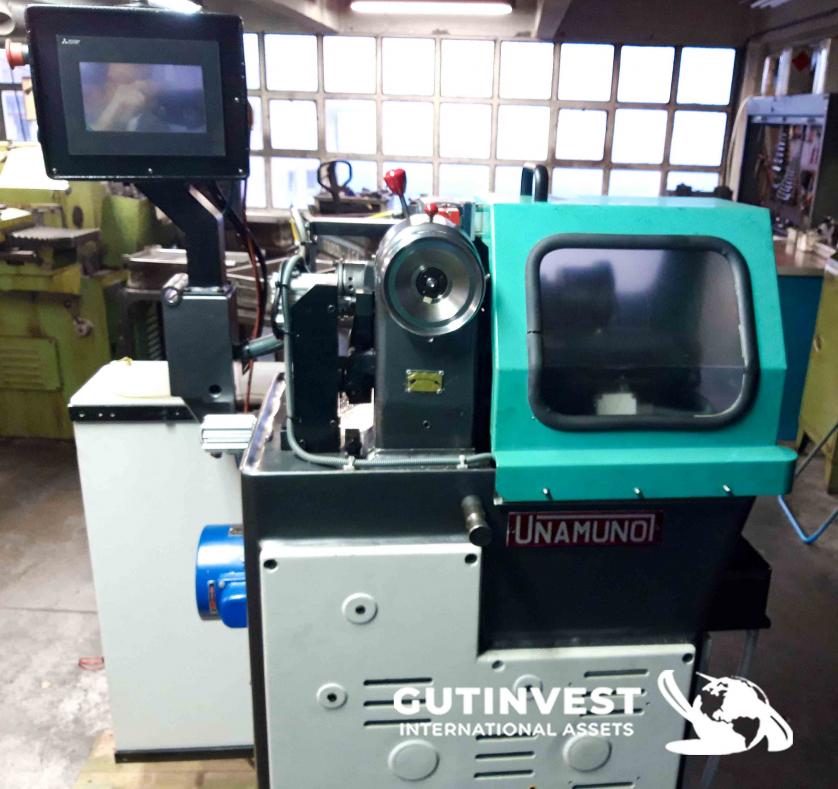

Manufacturer
UNAMUNO
Model
TA-16B PREMIUM
Year
Refurbished
Observations
Cam Lathe, Rebuilt.The conventional cam machine, but with full control of cam head and shaft speed. Up to 16mm bar diameter. Round capacity up to: 16 mm. Hexagonal capacity up to: 14 mm. Head capacity: Engine power: 2HP. Speed range: 1000-7000 rpm. Camshaft: Camshaft production: 4-60pcs/min, Max workpiece length: 220mm. Turning length: 35 mm. Drilling length: 35 mm. Number of working tools: 6 tools, Inner-outer thread capacity up to M-6. Thread capacity with cutter up to M-10. PLC control system with display.



Start price 25.000 €

Manufacturer
UNAMUNO
Model
TA-16B PREMIUM
Year
Refurbished
Observations
Cam Lathe, Rebuilt.The conventional cam machine, but with full control of cam head and shaft speed. Up to 16mm bar diameter. Round capacity up to: 16 mm. Hexagonal capacity up to: 14 mm. Head capacity: Engine power: 2HP. Speed range: 1000-7000 rpm. Camshaft: Camshaft production: 4-60pcs/min, Max workpiece length: 220mm. Turning length: 35 mm. Drilling length: 35 mm. Number of working tools: 6 tools, Inner-outer thread capacity up to M-6. Thread capacity with cutter up to M-10. PLC control system with display.



Start price 25.000 €

Sold
1  -  Spindle automatic lathe
25.000 €

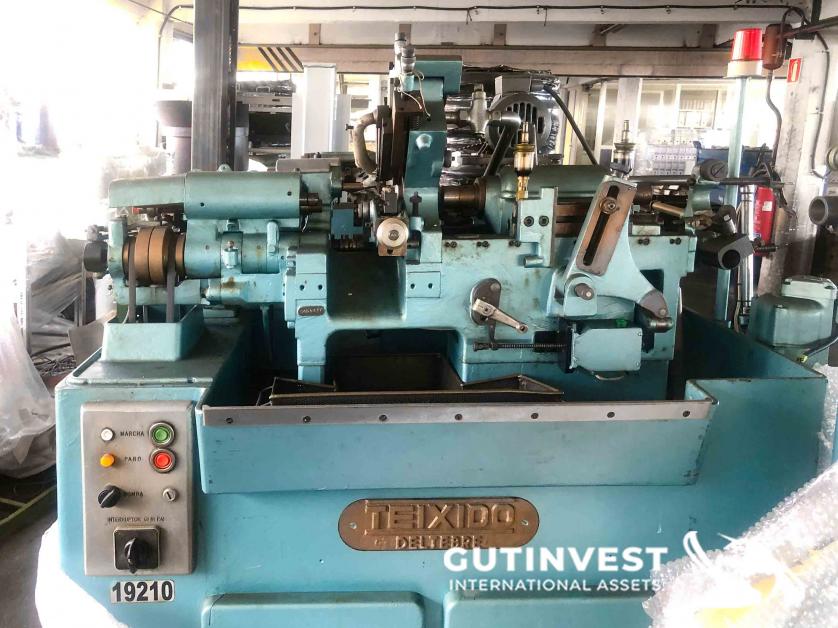

Manufacturer
TEIXIDO
Observations
Automatic Cam Lathe, 100% Refurbished, Moving Head,



Start price 6.000 €

Manufacturer
TEIXIDO
Observations
Automatic Cam Lathe, 100% Refurbished, Moving Head,



Start price 6.000 €

Sold
2  -  Automatic Cam Lathe
6.000 €

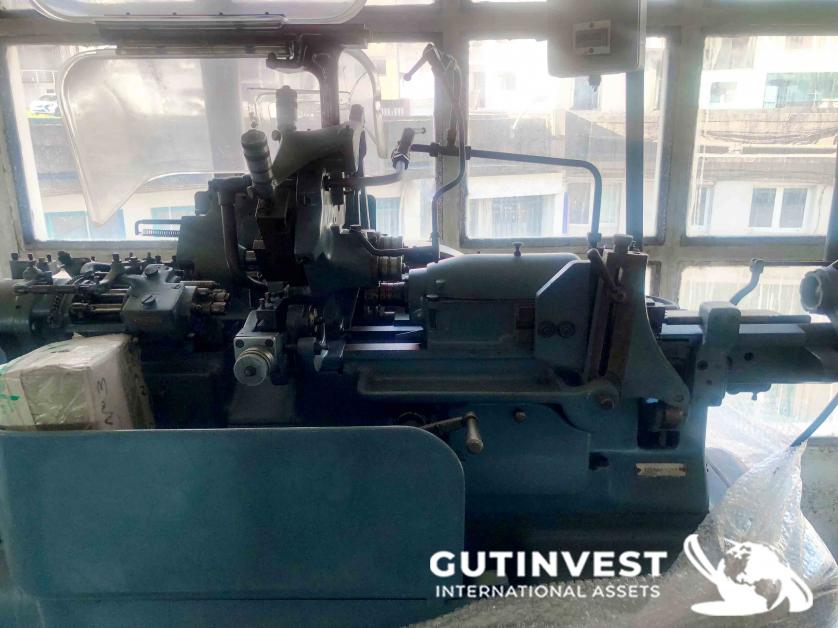

Manufacturer
TRAUB- STRHOM
Model
M125
Year
1973 (Rebuilt)
Observations
Automatic Cam Lathe. Bar pitch: 12.5 mm, moving head.



Start price 6.000 €

Manufacturer
TRAUB- STRHOM
Model
M125
Year
1973 (Rebuilt)
Observations
Automatic Cam Lathe. Bar pitch: 12.5 mm, moving head.



Start price 6.000 €

Sold
3  -  Automatic Cam Lathe
6.000 €
