No. of sale: 090525MA
Starting date

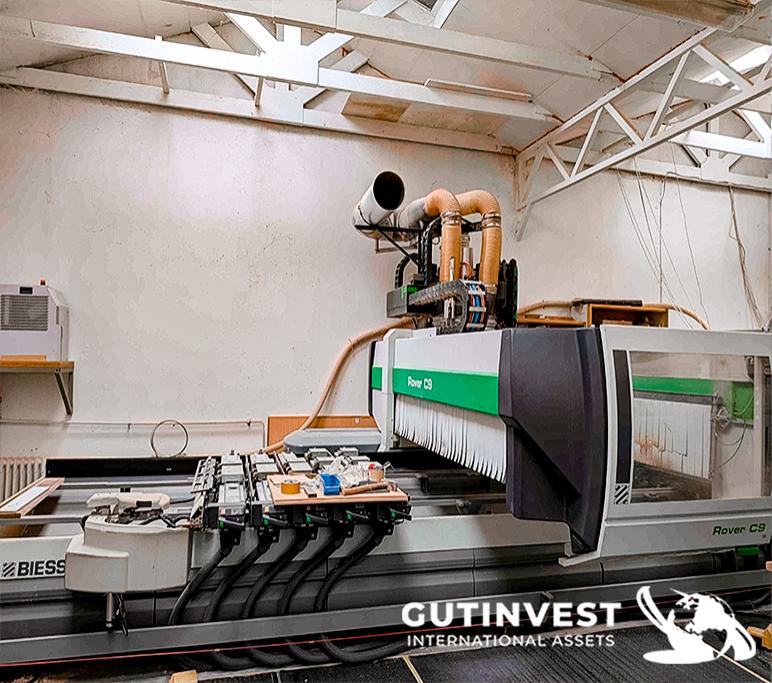

ManufacturerBIESSE ModelROVER C9.50 CONF 3 Year2009 ObservationsCNC Woodworking centre - 5 axes.
Axis dimensions: X = 4600 mm, Y = 1535 mm, Z = 275 mm.
Table with 8 bars and 32 vacuum shoes, L 1.525 mm,
Positioning of part holders, tool change, 22 positions, control with monitor.
Power: 24.5kW, 380V, 44a, 3ph, 50Hz.
ManufacturerBIESSE ModelROVER C9.50 CONF 3 Year2009 ObservationsCNC Woodworking centre - 5 axes.
Axis dimensions: X = 4600 mm, Y = 1535 mm, Z = 275 mm.
Table with 8 bars and 32 vacuum shoes, L 1.525 mm,
Positioning of part holders, tool change, 22 positions, control with monitor.
Power: 24.5kW, 380V, 44a, 3ph, 50Hz.
Start price 79.000 €

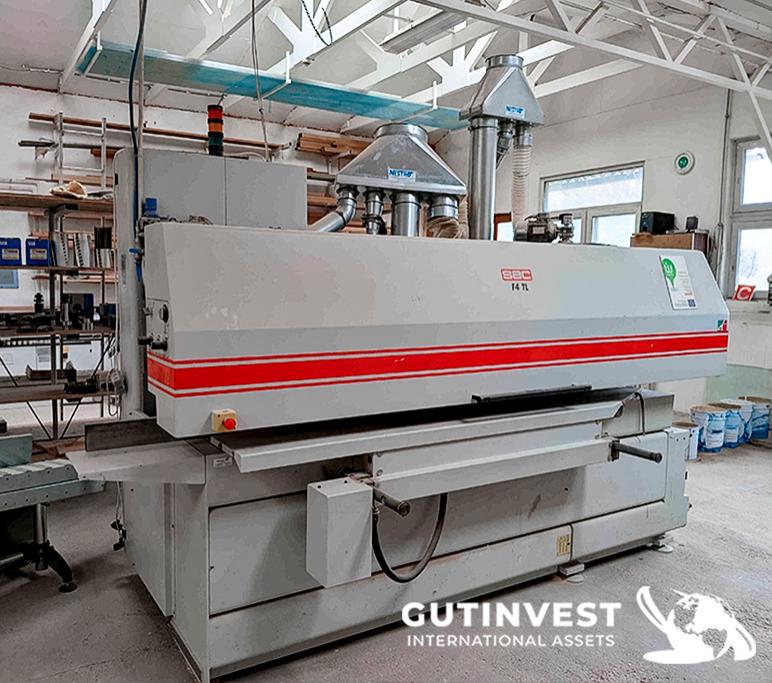

ManufacturerSAC ModelF4TL Year2011 ObservationsCNC angular center for doors and windows frames. Threading side: Threading carriage: Machining speed: 3-10 m/min. Return speed: 45 m/min. Table size: 290-955 mm Motor power: 1.1 kW Ruler tilt: ± 60°. Final cutting unit: Circular saw diameter: 400 mm Circular saw diameter: 30 mm Motor power: 3 kW Circular saw speed: 3000 rpm. Maximum cutting height: 90 mm Diameter of the suction collector at the top: 100 mm Suction capacity: 800 m³/h. Diameter of the suction collector at the bottom: 100 mm Suction capacity: 800 m³/h Threading unit: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 620 mm Vertical shaft travel: 565 mm Shaft speed: 3500 1/min. Motor power: 7.5 kW Max. tool diameter: 350 mm. Extraction collector diameter: 160 mm Suction capacity: 2000 m³/h. Profiling side: Front profiling axis: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 320 mm Vertical shaft travel: 295 mm Horizontal shaft adjustment: 60 mm Shaft speed: 6000 1/min. Axis rotation direction: left-right Motor power: 7.5 kW Max. tool diameter: 240 mm Extraction manifold diameter: 160 mm Suction capacity: 2000 m³/h. Second profiling axis: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 320 mm Vertical shaft travel: 295 mm Horizontal shaft adjustment: 60 mm Shaft speed: 6000 1/min. Shaft rotation: best Motor power: 7.5 kW Max. tool diameter: 240 mm Extraction manifold diameter: 160 mm Suction capacity: 2000 m³/h. Glass strip cutting unit: Circular saw blade diameter: 200 mm Circular saw blade diameter: 30 mm Horizontal axis adjustment: 60 mm Shaft speed: 6000 rpm. Engine power: 2.2 kW Extraction manifold diameter: 60 mm Suction capacity: 290 m³/h Power supply: Rubber cylinders with shaft transmission. The workpiece is pneumatically clamped. The feed speed can be infinitely adjusted: from 4 to 20 m/min. Power of the feed motor: 0.75 kW Number of feed rollers: 17 Diameter of the feed cylinder: 145 mm Power of the feed beam lifting motor: 0.37 kW The motorized beam lift can be controlled from the control panel via an electronic display. Hydraulic Unit: For the operation of the hydraulic system, it moves the shafts horizontally and guides the shafts vertically. The threading and profiling shafts are guided by a large-diameter guide, where a high-pressure oil film separates the moving surfaces. With this solution: - no friction resistance - no tolerances - no need for mechanical adjustment - no wear. Motor power: 0.37 kW Pump capacity: 12 l/min Tank capacity: 20 l Hydropneumatic battery capacity: 0.7 l CNC control and software: 17" color LCD monitor 102-key keyboard 10/100 alphanumeric port USB 2.0 Ethernet data transfer port (Front/Rear) Mouse system: WINDOWS XP prof.
ManufacturerSAC ModelF4TL Year2011 ObservationsCNC angular center for doors and windows frames. Threading side: Threading carriage: Machining speed: 3-10 m/min. Return speed: 45 m/min. Table size: 290-955 mm Motor power: 1.1 kW Ruler tilt: ± 60°. Final cutting unit: Circular saw diameter: 400 mm Circular saw diameter: 30 mm Motor power: 3 kW Circular saw speed: 3000 rpm. Maximum cutting height: 90 mm Diameter of the suction collector at the top: 100 mm Suction capacity: 800 m³/h. Diameter of the suction collector at the bottom: 100 mm Suction capacity: 800 m³/h Threading unit: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 620 mm Vertical shaft travel: 565 mm Shaft speed: 3500 1/min. Motor power: 7.5 kW Max. tool diameter: 350 mm. Extraction collector diameter: 160 mm Suction capacity: 2000 m³/h. Profiling side: Front profiling axis: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 320 mm Vertical shaft travel: 295 mm Horizontal shaft adjustment: 60 mm Shaft speed: 6000 1/min. Axis rotation direction: left-right Motor power: 7.5 kW Max. tool diameter: 240 mm Extraction manifold diameter: 160 mm Suction capacity: 2000 m³/h. Second profiling axis: Vertical axis change speed: 5 m/min. Shaft diameter: 50 mm Shaft length: 320 mm Vertical shaft travel: 295 mm Horizontal shaft adjustment: 60 mm Shaft speed: 6000 1/min. Shaft rotation: best Motor power: 7.5 kW Max. tool diameter: 240 mm Extraction manifold diameter: 160 mm Suction capacity: 2000 m³/h. Glass strip cutting unit: Circular saw blade diameter: 200 mm Circular saw blade diameter: 30 mm Horizontal axis adjustment: 60 mm Shaft speed: 6000 rpm. Engine power: 2.2 kW Extraction manifold diameter: 60 mm Suction capacity: 290 m³/h Power supply: Rubber cylinders with shaft transmission. The workpiece is pneumatically clamped. The feed speed can be infinitely adjusted: from 4 to 20 m/min. Power of the feed motor: 0.75 kW Number of feed rollers: 17 Diameter of the feed cylinder: 145 mm Power of the feed beam lifting motor: 0.37 kW The motorized beam lift can be controlled from the control panel via an electronic display. Hydraulic Unit: For the operation of the hydraulic system, it moves the shafts horizontally and guides the shafts vertically. The threading and profiling shafts are guided by a large-diameter guide, where a high-pressure oil film separates the moving surfaces. With this solution: - no friction resistance - no tolerances - no need for mechanical adjustment - no wear. Motor power: 0.37 kW Pump capacity: 12 l/min Tank capacity: 20 l Hydropneumatic battery capacity: 0.7 l CNC control and software: 17" color LCD monitor 102-key keyboard 10/100 alphanumeric port USB 2.0 Ethernet data transfer port (Front/Rear) Mouse system: WINDOWS XP prof.
Start price 35.000 €

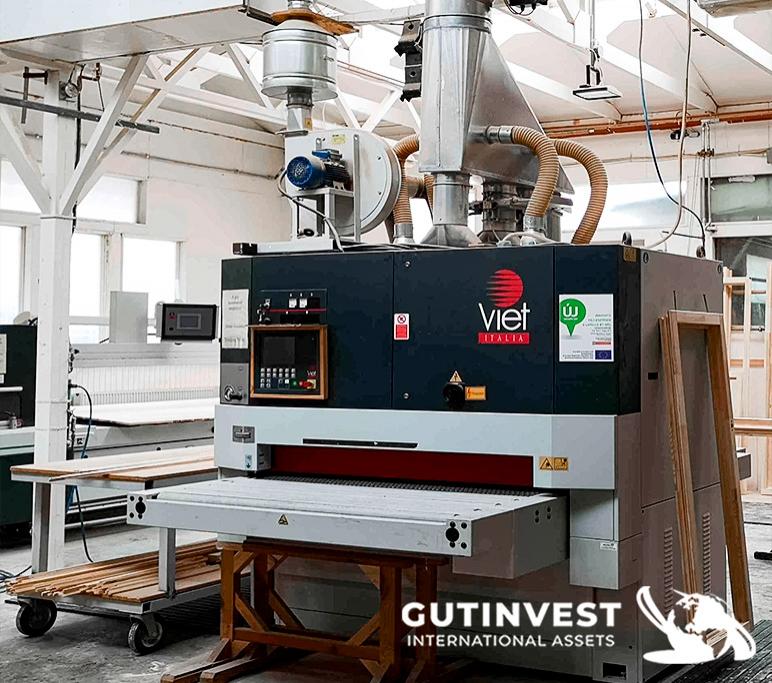

ManufacturerViet Model S1 223 2200 R/KRT Year2011 ObservationsWood sander machine. Working width: 1350 mm Abrasive belt size: 1380 x 2200 mm Workpiece thickness: 3-160 mm First unit motor power: 11Kw Second motor power (combined unit): 11Kw Feed speed: 17nl/min: 3-16m/min Power motor power: 1.5Kw Pneumatic connection 6 bar: 6bar Air consumption: 17nl/min Exhaust port diameter: 158 mm Exhaust air speed: 25 m/min Exhaust requirement: 3095m3/h Net machine weight: 2450Kg Dimensions: 2320 x 2030 x 2050mm.
ManufacturerViet Model S1 223 2200 R/KRT Year2011 ObservationsWood sander machine. Working width: 1350 mm Abrasive belt size: 1380 x 2200 mm Workpiece thickness: 3-160 mm First unit motor power: 11Kw Second motor power (combined unit): 11Kw Feed speed: 17nl/min: 3-16m/min Power motor power: 1.5Kw Pneumatic connection 6 bar: 6bar Air consumption: 17nl/min Exhaust port diameter: 158 mm Exhaust air speed: 25 m/min Exhaust requirement: 3095m3/h Net machine weight: 2450Kg Dimensions: 2320 x 2030 x 2050mm.
Start price 14.000 €

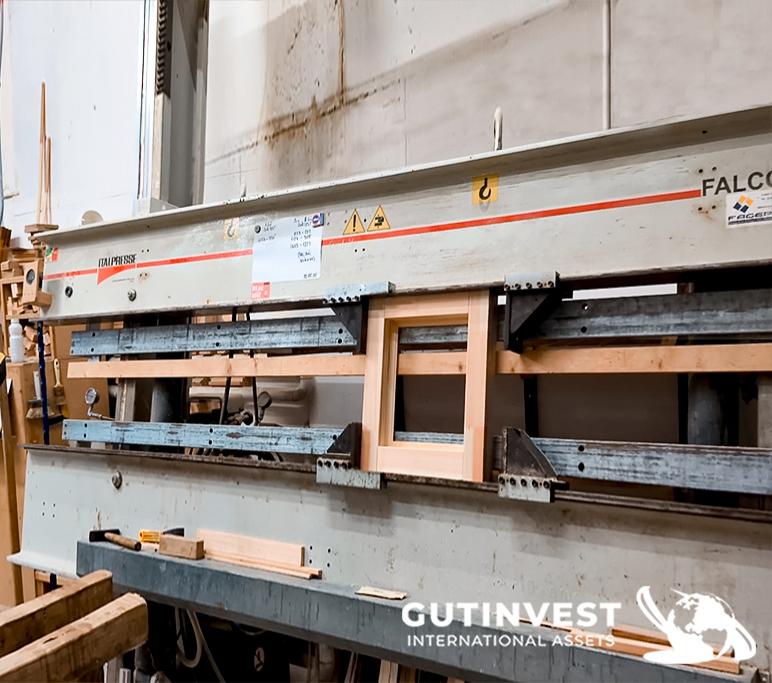

ManufacturerITALPRESSE ModelFALCON-S Year2011 ObservationsFrame Glamping press
Dimensions (width x length x height): 1150 x 3800 x 2700mm. Weight: 1650Kg.
ManufacturerITALPRESSE ModelFALCON-S Year2011 ObservationsFrame Glamping press
Dimensions (width x length x height): 1150 x 3800 x 2700mm. Weight: 1650Kg.
Start price 4.900 €
