No. of sale: 111224M
Starting date

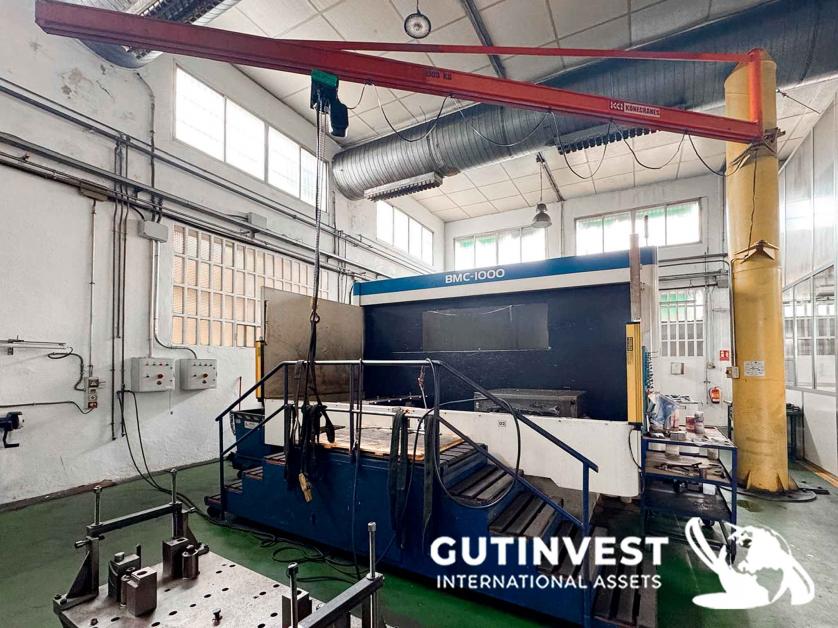

ManufacturerTOSHIBA - SHIBAURA ModelBMC-1000 Year1998 ObservationsHorizontal Machining Center.
Working hours: 13.608hrs
Axis travels: X: 2.000 mm, Y: 1.250 mm, Z: 1.200 mm.
(x2) 1000 x 1000 mm tables with channels.
Desktop 60 holes M16 at 100 mm and central guide Ø50.
Allowable weight on the table: 2,500 Kg./m2.
Maximum pallet tipping: 2,000 mm.
Max. working feed: 10,000 mm/min.
Max. spindle speed: 5,000 rpm.
Max. tool length: 550 mm.
Max. tool diameter: 125 (240) mm.
Numerical control: TOSNUC 888 (identical programming Fanuc)
High pressure coolant pump 70 bars Cool Jet
Includes additional table without assembly
ManufacturerTOSHIBA - SHIBAURA ModelBMC-1000 Year1998 ObservationsHorizontal Machining Center.
Working hours: 13.608hrs
Axis travels: X: 2.000 mm, Y: 1.250 mm, Z: 1.200 mm.
(x2) 1000 x 1000 mm tables with channels.
Desktop 60 holes M16 at 100 mm and central guide Ø50.
Allowable weight on the table: 2,500 Kg./m2.
Maximum pallet tipping: 2,000 mm.
Max. working feed: 10,000 mm/min.
Max. spindle speed: 5,000 rpm.
Max. tool length: 550 mm.
Max. tool diameter: 125 (240) mm.
Numerical control: TOSNUC 888 (identical programming Fanuc)
High pressure coolant pump 70 bars Cool Jet
Includes additional table without assembly
Start price 45.000 €

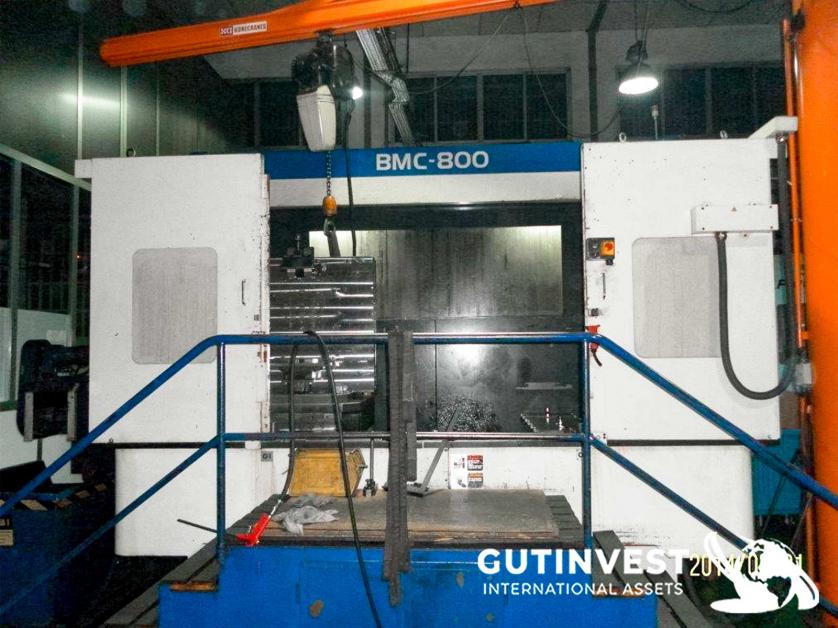

ManufacturerTOSHIBA - SHIBAURA ModelBMC-800 Year2001 ObservationsHorizontal Machining Center
Total on hours:42,383h, total working hours: 28,986h
Axis travel: X: 1,600 mm, Y: 1,250 mm, Z: 1,200 mm
Table 800 x 800 mm with channels
Tabletop with 48 holes M16 to 100 mm and central guide Ø50
Allowable weight on table: 2,000 Kg./m2
Maximum pallet dumping: 1,500mm
Max. working feed: 10,000 mm/min
Max. spindle speed: 5,000 rpm
Max. tool length: 550 mm
Max. tool diameter: 125 (240) mm
Numerical control: TOSNUC 888 (programming identical Fanuc)
High pressure coolant pump 70 bars Cool Jet
ManufacturerTOSHIBA - SHIBAURA ModelBMC-800 Year2001 ObservationsHorizontal Machining Center
Total on hours:42,383h, total working hours: 28,986h
Axis travel: X: 1,600 mm, Y: 1,250 mm, Z: 1,200 mm
Table 800 x 800 mm with channels
Tabletop with 48 holes M16 to 100 mm and central guide Ø50
Allowable weight on table: 2,000 Kg./m2
Maximum pallet dumping: 1,500mm
Max. working feed: 10,000 mm/min
Max. spindle speed: 5,000 rpm
Max. tool length: 550 mm
Max. tool diameter: 125 (240) mm
Numerical control: TOSNUC 888 (programming identical Fanuc)
High pressure coolant pump 70 bars Cool Jet
Start price 40.000 €

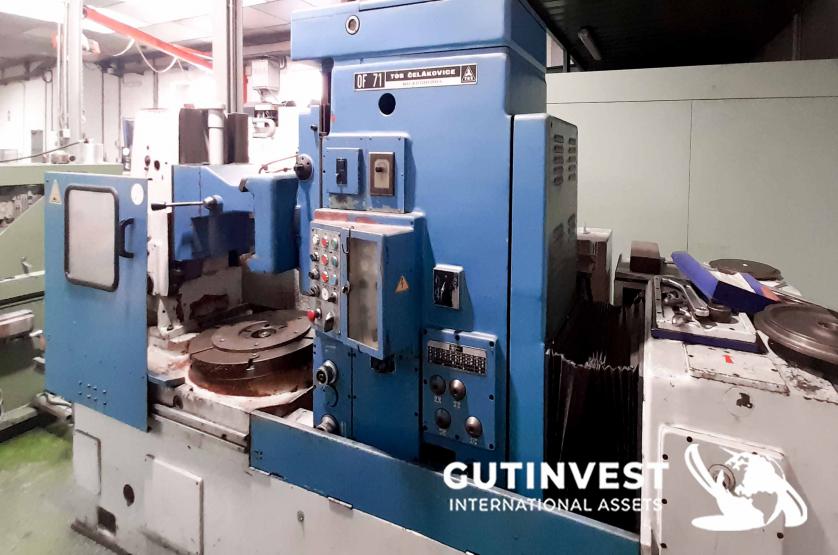

ManufacturerTOS ModelOF71 ObservationsVertical Gear Hobbing Machine.
Maximum Hobbing Module 8 - DP 3.6.
Maximum diameter of the carved spur gear 710 mm.
Maximum width of the carved spur gear 355 mm.
Minimum and maximum number of teeth 8 - 300.
Maximum weight of the workpiece 700 kg.
Maximum distance between the carving center lines and the clamping axis 475 mm.
Minimum distance between the carving centerlines and the clamping axis 60 mm.
Distance from centerline of the cutter to the table 210 / 665 mm.
Worktable diameter 630 mm.
Hole in the work table 120 mm. Hole depth 750 mm.
Diameter of the indexing helical wheel 503 mm.
Maximum dimensions of the cutter 195 mm x 220 mm.
Cutter speed range 10 from 40 to 315 rpm.
Vertical and horizontal fast walking.
Main motor 7.5 kW. Machine
External Dimensions: 3200mm L x 1380mm W x 2530mm H.
ManufacturerTOS ModelOF71 ObservationsVertical Gear Hobbing Machine.
Maximum Hobbing Module 8 - DP 3.6.
Maximum diameter of the carved spur gear 710 mm.
Maximum width of the carved spur gear 355 mm.
Minimum and maximum number of teeth 8 - 300.
Maximum weight of the workpiece 700 kg.
Maximum distance between the carving center lines and the clamping axis 475 mm.
Minimum distance between the carving centerlines and the clamping axis 60 mm.
Distance from centerline of the cutter to the table 210 / 665 mm.
Worktable diameter 630 mm.
Hole in the work table 120 mm. Hole depth 750 mm.
Diameter of the indexing helical wheel 503 mm.
Maximum dimensions of the cutter 195 mm x 220 mm.
Cutter speed range 10 from 40 to 315 rpm.
Vertical and horizontal fast walking.
Main motor 7.5 kW. Machine
External Dimensions: 3200mm L x 1380mm W x 2530mm H.
Start price 10.500 €
