No. of sale: 120324O
Starting date

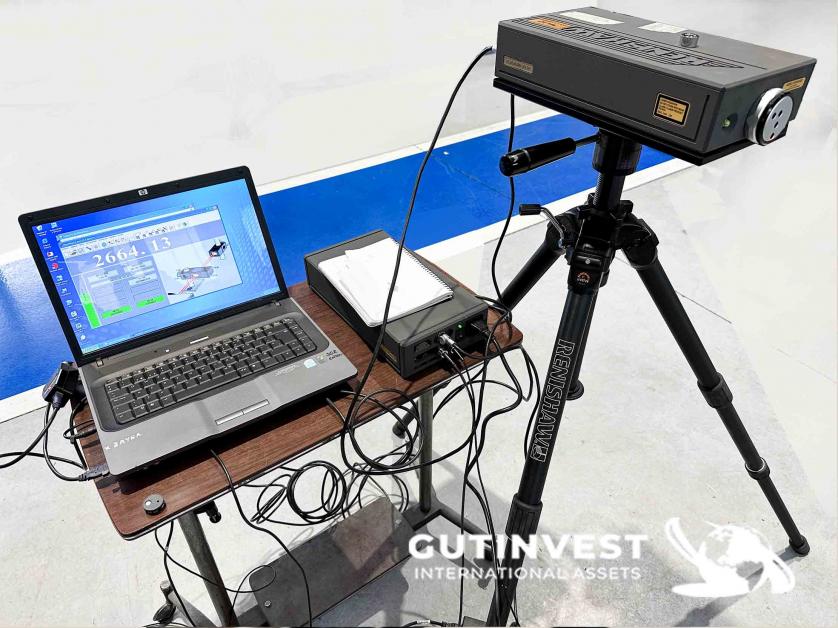

ManufacturerRENISHAW ModelML10 GOLD KIT Year2007 No. SeriesH20181 / H50031 ObservationsLaser calibration equipment with interferometer.
Accuracy from ±0.1 ppm to ±0.5 ppm
Laser Frequency Stabilization (Peak-Peak)
With EC10 Environmental Compensation Unit
Certified linear system measurement accuracy of ±0.7 ppm.
Power supply with automatic adjustment according to the available power.
Tripod
Dimensions:
Interferometer case and components: 240x450x750 mm, 40 Kg approx.
Tripod case: 250x250x900 mm, approx. 10 Kg
ManufacturerRENISHAW ModelML10 GOLD KIT Year2007 No. SeriesH20181 / H50031 ObservationsLaser calibration equipment with interferometer.
Accuracy from ±0.1 ppm to ±0.5 ppm
Laser Frequency Stabilization (Peak-Peak)
With EC10 Environmental Compensation Unit
Certified linear system measurement accuracy of ±0.7 ppm.
Power supply with automatic adjustment according to the available power.
Tripod
Dimensions:
Interferometer case and components: 240x450x750 mm, 40 Kg approx.
Tripod case: 250x250x900 mm, approx. 10 Kg
Start price 12.500 €

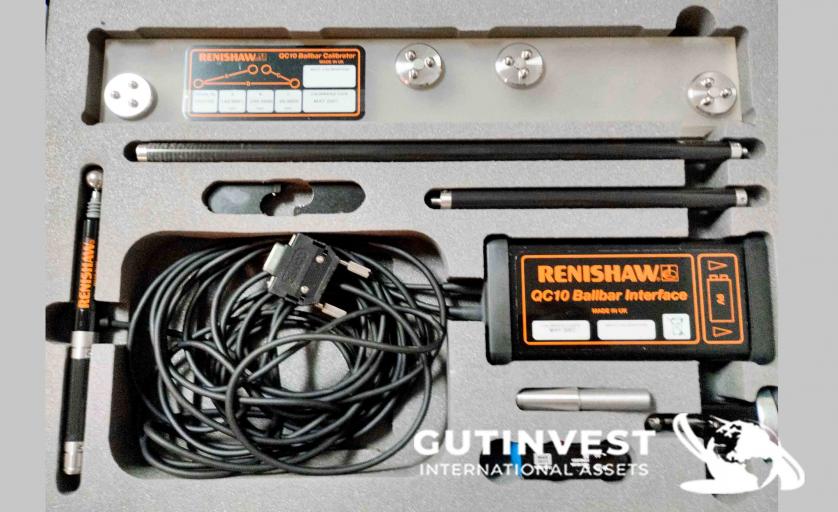

ManufacturerRENISHAW Model QC10 Year2007 No. Series H48174 ObservationsBallbar - Machine Tool Performance Monitoring Device. Key to quality and productivity. Includes: 100 mm RS232 USB cable. Ballbar & Mounting Kit 50 / 150 / 300 mm extensions. Ballbar Zerodur Ballbar Calibrator Renishaw Calibration Stickers software. Cleaning kit. Original carrying case. The kit contains a precision linear transducer designed by Renishaw itself. The data is transmitted to a PC via RS232 or USB connector. Dimensions: 400x300x100 mm. Equipment weight: 4 Kg
ManufacturerRENISHAW Model QC10 Year2007 No. Series H48174 ObservationsBallbar - Machine Tool Performance Monitoring Device. Key to quality and productivity. Includes: 100 mm RS232 USB cable. Ballbar & Mounting Kit 50 / 150 / 300 mm extensions. Ballbar Zerodur Ballbar Calibrator Renishaw Calibration Stickers software. Cleaning kit. Original carrying case. The kit contains a precision linear transducer designed by Renishaw itself. The data is transmitted to a PC via RS232 or USB connector. Dimensions: 400x300x100 mm. Equipment weight: 4 Kg
Start price 3.500 €

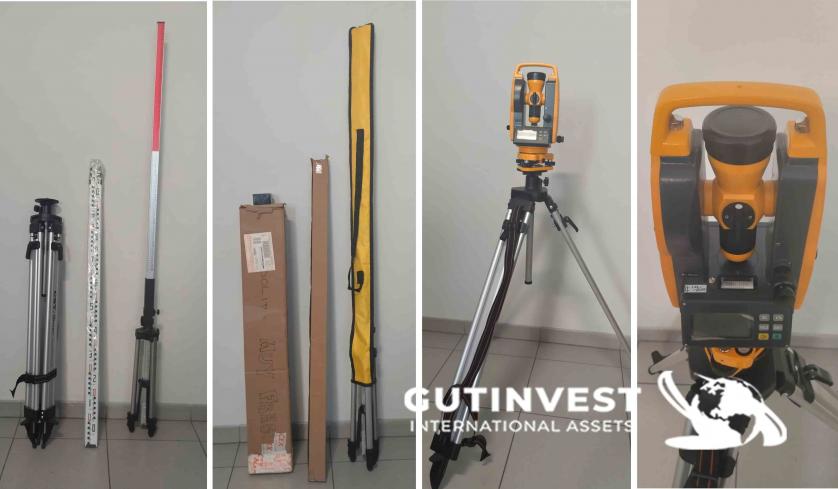

ManufacturerCST/berger ModelDGT10 Year2007 No. Series66250 ObservationsTheodolite - Surveying tool for angle measurements with maximum accuracy. TECHNICAL SPECIFICATIONS: ANGULAR ACCURACY Angular accuracy 5" EYEGLASS Optical magnification: 30x Length: 155 mm Effective aperture: 45 mm Image: Right Minimum focusing distance: 1.3 m Field of view: 1°30' Statistical constant: 100 ANGLE MEASUREMENT Type: Incremental Minimum reading: 5" / 10" Lighting: Display and reticle Optical plumb line Magnification : 3X Focus range: 0.5 to infinity POWER SUPPLY Working Voltage: 4-6 VDC Batteries: 4 AA Alkaline Continuous Operating Time: 15 hours. OTHER Display: LCD (both sides) Working temperature: From -20° to +50° Contains: 1 Theodolite, 1 Theodolite Tripod, 1 Measuring Tripod, 1 Measuring Ruler, 1 Sight, 1 Theodolite Case, 1 Adjustment Wrench, 1 Battery, 1 Charger, 1 AA Battery Holder and 1 Manual.
Dimensions: Theodolite Suitcase: 450x300x300 mm (20Kg) Theodolite Tripod: 170x170x1000 mm (20 Kg) Tripod Meter: 100x100x1700 mm (5 Kg) Ruler: 20x40x1200 mm (1 Kg)
ManufacturerCST/berger ModelDGT10 Year2007 No. Series66250 ObservationsTheodolite - Surveying tool for angle measurements with maximum accuracy. TECHNICAL SPECIFICATIONS: ANGULAR ACCURACY Angular accuracy 5" EYEGLASS Optical magnification: 30x Length: 155 mm Effective aperture: 45 mm Image: Right Minimum focusing distance: 1.3 m Field of view: 1°30' Statistical constant: 100 ANGLE MEASUREMENT Type: Incremental Minimum reading: 5" / 10" Lighting: Display and reticle Optical plumb line Magnification : 3X Focus range: 0.5 to infinity POWER SUPPLY Working Voltage: 4-6 VDC Batteries: 4 AA Alkaline Continuous Operating Time: 15 hours. OTHER Display: LCD (both sides) Working temperature: From -20° to +50° Contains: 1 Theodolite, 1 Theodolite Tripod, 1 Measuring Tripod, 1 Measuring Ruler, 1 Sight, 1 Theodolite Case, 1 Adjustment Wrench, 1 Battery, 1 Charger, 1 AA Battery Holder and 1 Manual.
Dimensions: Theodolite Suitcase: 450x300x300 mm (20Kg) Theodolite Tripod: 170x170x1000 mm (20 Kg) Tripod Meter: 100x100x1700 mm (5 Kg) Ruler: 20x40x1200 mm (1 Kg)
Start price 1.900 €
