No. of sale: 140224M

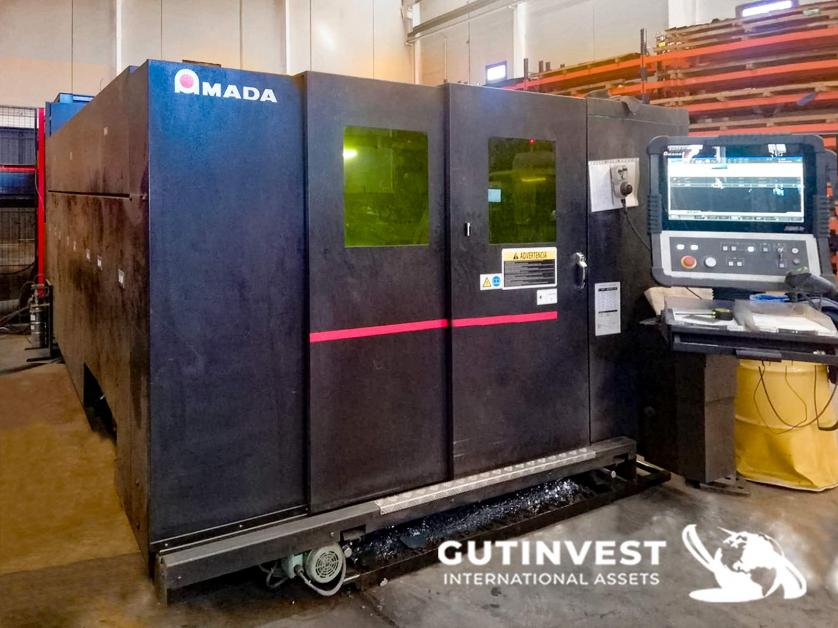

Starting dateManufacturerAmada ModelLCG 3015AJ Year2018-2019 ObservationsLCG-3015AJ Fiber Laser Cutting
Maximum Laser Power (W) 6300
Maximum Working Dimensions X x Y (mm)3070 x 1550
Z-axis stroke (mm) 100
Repeatability of positioning accuracy (mm) ± 0.01
Maximum Material Weight (kg) 920
AC Servo drives Drive System
Maximum thickness*:
- Carbon steel (mm) 18 ; Stainless Steel (mm) 15
- Aluminium (mm) 12 ; - Brass (mm) 8; - Copper (mm) 6
Dimensions: Length (mm)**10136 Width (mm) 2840; Height (mm) 2432
Weight (kg) 9500
INCLUDES:
ASLUL 3015 Charger
KKT CBOXX 30 Refrigerator
COMP 1500-8/9 SB Vacuum Cleaner (2019)
* The maximum value will depend on the quality of the material and the environmental conditions ** Machine + table change (LSTe)
ManufacturerAmada ModelLCG 3015AJ Year2018-2019 ObservationsLCG-3015AJ Fiber Laser Cutting
Maximum Laser Power (W) 6300
Maximum Working Dimensions X x Y (mm)3070 x 1550
Z-axis stroke (mm) 100
Repeatability of positioning accuracy (mm) ± 0.01
Maximum Material Weight (kg) 920
AC Servo drives Drive System
Maximum thickness*:
- Carbon steel (mm) 18 ; Stainless Steel (mm) 15
- Aluminium (mm) 12 ; - Brass (mm) 8; - Copper (mm) 6
Dimensions: Length (mm)**10136 Width (mm) 2840; Height (mm) 2432
Weight (kg) 9500
INCLUDES:
ASLUL 3015 Charger
KKT CBOXX 30 Refrigerator
COMP 1500-8/9 SB Vacuum Cleaner (2019)
* The maximum value will depend on the quality of the material and the environmental conditions ** Machine + table change (LSTe)
Start price 250.000 €
