No. of sale: 140722M
Starting date

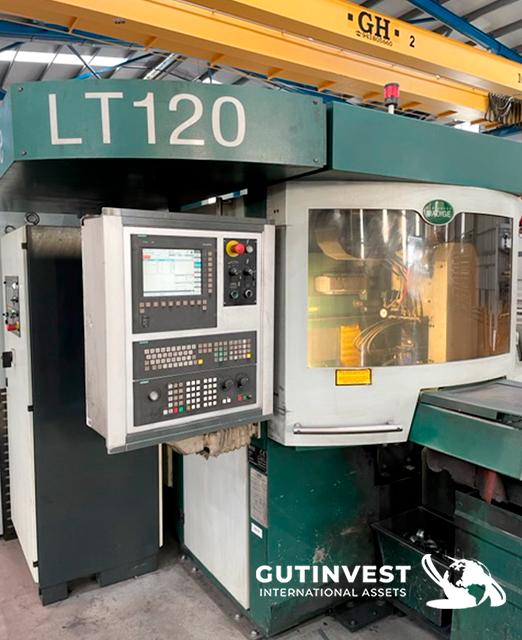

ManufacturerAdige ModelLT120 Year2006 ObservationsCNC laser tube cutting machine.
▪ With laser source Rofin Sinar CO2 2000W
▪ Numerical control: Siemens Sinumerik 840 D.
Technical data:
▪ Round tube from Ø12 mm to Ø120 mm
▪ Square tube from 12x12mm to 100x100 mm
▪ Rectangular tube, oval plane, oval semi plane
▪ Thicknesses from 1mm to 5mm wall
▪ Automated tube loading. Lengths from 3200 to 6500mm
▪ Automated unloading. Maximum discharge length: 4500mm
▪ Maximum weight on table 4,000 Kgrs.
▪ Welding search by optical
▪ System Network
▪ Card Smoke
▪ Suction cabinet Cooling cabinet Working hours
▪ Hours on machine: 30.000 h
▪ Hours laser ignition: 24.000h
▪ Laser resonance chamber changed in 2018 Software
▪ Adige TubeWork
Dimensions: LxWxH: 13321 x 4550 x 2555 mm.
ManufacturerAdige ModelLT120 Year2006 ObservationsCNC laser tube cutting machine.
▪ With laser source Rofin Sinar CO2 2000W
▪ Numerical control: Siemens Sinumerik 840 D.
Technical data:
▪ Round tube from Ø12 mm to Ø120 mm
▪ Square tube from 12x12mm to 100x100 mm
▪ Rectangular tube, oval plane, oval semi plane
▪ Thicknesses from 1mm to 5mm wall
▪ Automated tube loading. Lengths from 3200 to 6500mm
▪ Automated unloading. Maximum discharge length: 4500mm
▪ Maximum weight on table 4,000 Kgrs.
▪ Welding search by optical
▪ System Network
▪ Card Smoke
▪ Suction cabinet Cooling cabinet Working hours
▪ Hours on machine: 30.000 h
▪ Hours laser ignition: 24.000h
▪ Laser resonance chamber changed in 2018 Software
▪ Adige TubeWork
Dimensions: LxWxH: 13321 x 4550 x 2555 mm.
Start price 29.500 €
