No. of sale: 161024A
Starting date

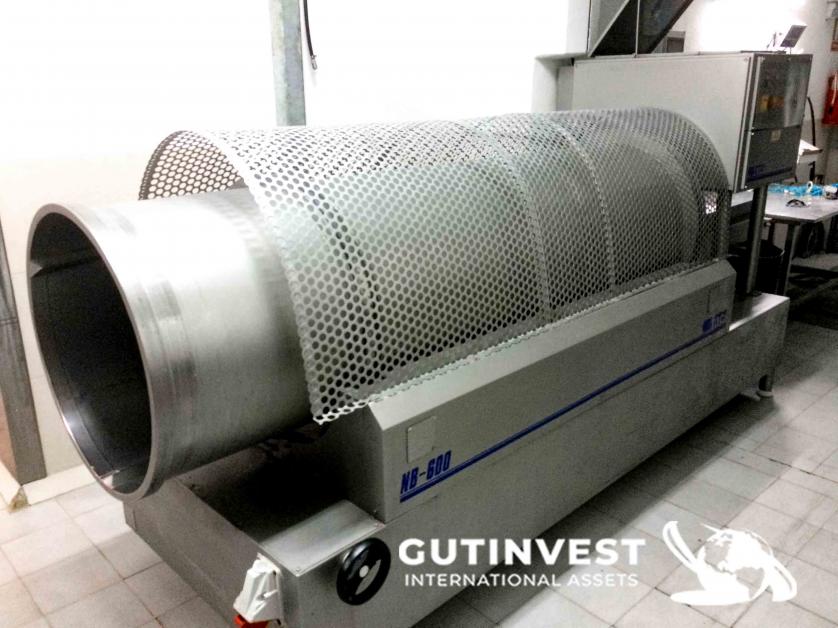

ManufacturerFAC ModelNB-600 ObservationsContinuous ham nitrifying drum . Hopper capacity: 60Kg. Output: 600 pieces/hour. Electricity consumption: 2kW, machine dimensions: 3.500x1.100x1.700mm, Approximate weight: 850Kg. - Tank for the nitrifying agent with automatic dosing system by auger. -Tank for the nitrifying agent with a capacity of 70 liters. - Rubbing cylinder with internal blade system. - Regulation of rubbing intensity. - Constructed of AISI 304 stainless steel. Once the ham has been placed on the conveyor belt, a photocell detects it and the dispenser incorporates the necessary amount of nitrifying agent into the piece as it enters the drum. Once inside, thanks to the design of the blades and the rotating movement of the bass drum, the hams are gently rotated on themselves, rubbing against the inner wall and avoiding blows between them while the nitrifying agent is evenly distributed over their entire surface.
ManufacturerFAC ModelNB-600 ObservationsContinuous ham nitrifying drum . Hopper capacity: 60Kg. Output: 600 pieces/hour. Electricity consumption: 2kW, machine dimensions: 3.500x1.100x1.700mm, Approximate weight: 850Kg. - Tank for the nitrifying agent with automatic dosing system by auger. -Tank for the nitrifying agent with a capacity of 70 liters. - Rubbing cylinder with internal blade system. - Regulation of rubbing intensity. - Constructed of AISI 304 stainless steel. Once the ham has been placed on the conveyor belt, a photocell detects it and the dispenser incorporates the necessary amount of nitrifying agent into the piece as it enters the drum. Once inside, thanks to the design of the blades and the rotating movement of the bass drum, the hams are gently rotated on themselves, rubbing against the inner wall and avoiding blows between them while the nitrifying agent is evenly distributed over their entire surface.
Start price 14.000 €

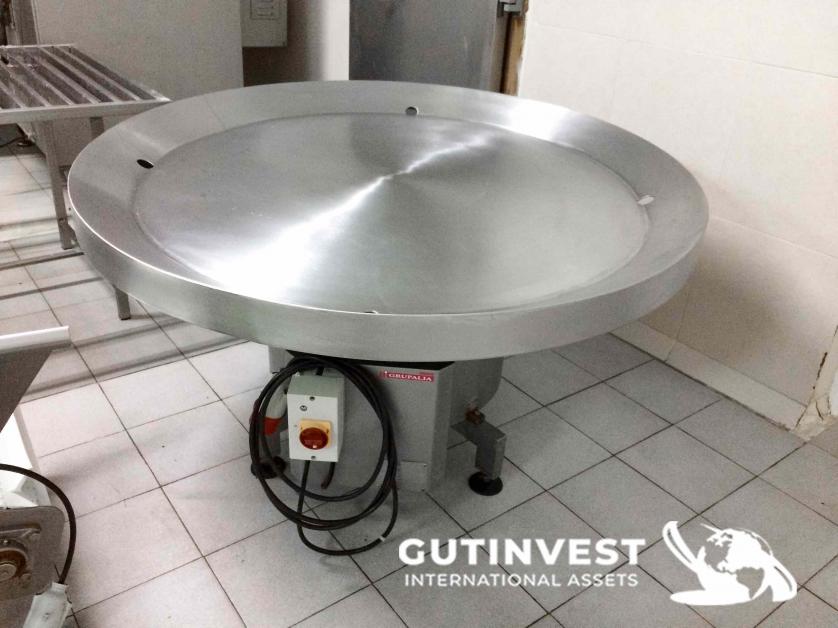

ManufacturerINOX GRUPALIA ModelMGE 130 ObservationsRotary Table. Diameter of 130 cm. - Stainless steel bearings and polyamide support. - Plate thickness of 6 mm. Length: 1,300 mm Width: 1,300 mm Height: 0.700 mm Weight: 90 Kg Electrical consumption: 0.25 kW The rotary table is made of AISI-304 stainless steel. Rotation system by means of a 0.25 kW geared motor. The bearings are made of stainless steel with a polyamide support. The turntable is 6 mm thick in AISI-304 stainless steel. For belt ends, allowing you to hold the products with a correct ergonomic posture.
ManufacturerINOX GRUPALIA ModelMGE 130 ObservationsRotary Table. Diameter of 130 cm. - Stainless steel bearings and polyamide support. - Plate thickness of 6 mm. Length: 1,300 mm Width: 1,300 mm Height: 0.700 mm Weight: 90 Kg Electrical consumption: 0.25 kW The rotary table is made of AISI-304 stainless steel. Rotation system by means of a 0.25 kW geared motor. The bearings are made of stainless steel with a polyamide support. The turntable is 6 mm thick in AISI-304 stainless steel. For belt ends, allowing you to hold the products with a correct ergonomic posture.
Start price 1.900 €

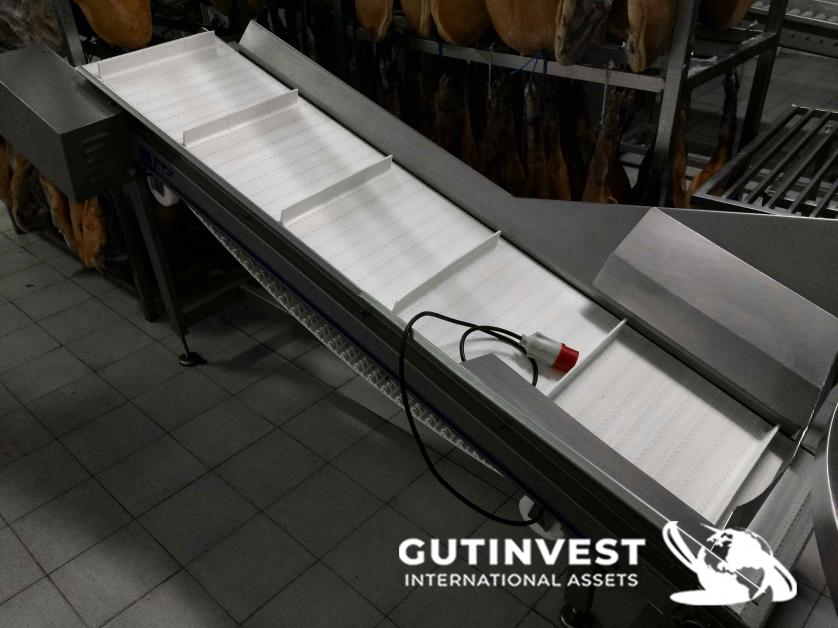

Manufacturer FAC ModelCT-SB2-C ObservationsOutput belt - conveyor belt. Production: 600 pieces/h Electrical consumption: 0.25 kW Length: 1,800 mm. Width: 1,200 mm. Height: 1,000 mm. Weight: 140 Kg - Specific technical plastic conveyor belt. - AISI-304 stainless steel construction. Continuous nitrifying drum output tape that lifts the hams from the drum outlet to the rotary table to be able to place them comfortably for salting, giving comfort to workers. It is recommended to use it together with a rotary table.
Manufacturer FAC ModelCT-SB2-C ObservationsOutput belt - conveyor belt. Production: 600 pieces/h Electrical consumption: 0.25 kW Length: 1,800 mm. Width: 1,200 mm. Height: 1,000 mm. Weight: 140 Kg - Specific technical plastic conveyor belt. - AISI-304 stainless steel construction. Continuous nitrifying drum output tape that lifts the hams from the drum outlet to the rotary table to be able to place them comfortably for salting, giving comfort to workers. It is recommended to use it together with a rotary table.
Start price 1.900 €

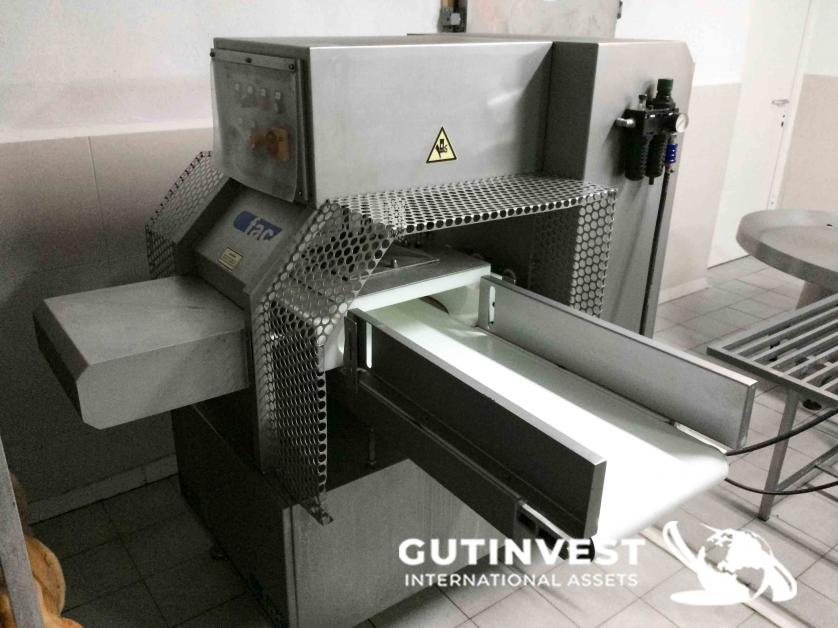

ManufacturerFAC ModelFAJ-800 ObservationsAutomatic ham former. Production: 600 pieces/hour. Compressed air pressure: 6kg/cm2. Machine dimensions: 1,800x1,680x1,600mm. Approximate weight: 650Kg. - PVC conveyor belt. - Mould, counter mould and upper tread made of technical plastic. - Pneumatic drive controlled by programmable automaton with pressure and pressing time regulation. - Constructed of AISI-304 stainless steel. The ham is placed on a conveyor belt and passes to the forming area. It consists of a system of three pneumatic pistons, interchangeable mold and counter mold and an upper pressor. After detecting the passage of the ham, by means of a photocell, the three pistons are activated to form the piece. The specific design of the continuous high-performance system facilitates this operation, avoiding product handling with the consequent saving of time and labor.
ManufacturerFAC ModelFAJ-800 ObservationsAutomatic ham former. Production: 600 pieces/hour. Compressed air pressure: 6kg/cm2. Machine dimensions: 1,800x1,680x1,600mm. Approximate weight: 650Kg. - PVC conveyor belt. - Mould, counter mould and upper tread made of technical plastic. - Pneumatic drive controlled by programmable automaton with pressure and pressing time regulation. - Constructed of AISI-304 stainless steel. The ham is placed on a conveyor belt and passes to the forming area. It consists of a system of three pneumatic pistons, interchangeable mold and counter mold and an upper pressor. After detecting the passage of the ham, by means of a photocell, the three pistons are activated to form the piece. The specific design of the continuous high-performance system facilitates this operation, avoiding product handling with the consequent saving of time and labor.
Start price 9.500 €

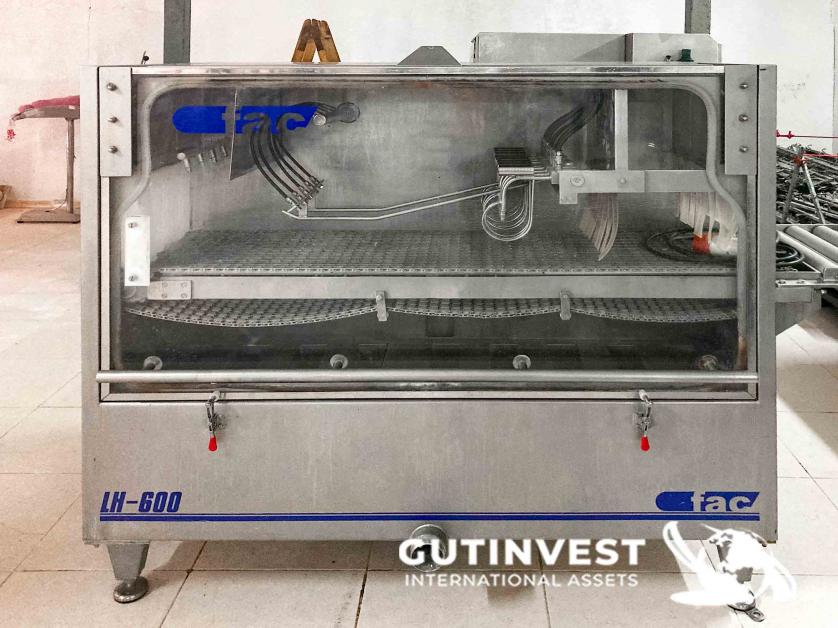

ManufacturerFAC ModelLH-600 ObservationsHam Washer machine. Production: 600 pieces/hour. Electric consumption: 4.37kW. Machine dimensions: 2500x600x1,700mm. Approximate weight: 350Kg. - Closed washing circuit. - Pump with suction filter. - Independent tilting sprinklers in washing. - Level control in the washing water tank. - Rinse with water direct from the mains. - AISI 304 stainless steel conveyor. Once the ham has been placed on the conveyor belt, it goes to the washing chamber where an advanced tilting sprinkler system adapts to the surface of the ham, injecting pressurized water and causing the salt to be dragged away, which is collected in a lower tank. This water is recovered in the washing circuit allowing significant savings. The ham is then rinsed with mains water. The ham comes out of the washing machine and is ready to be hung.
ManufacturerFAC ModelLH-600 ObservationsHam Washer machine. Production: 600 pieces/hour. Electric consumption: 4.37kW. Machine dimensions: 2500x600x1,700mm. Approximate weight: 350Kg. - Closed washing circuit. - Pump with suction filter. - Independent tilting sprinklers in washing. - Level control in the washing water tank. - Rinse with water direct from the mains. - AISI 304 stainless steel conveyor. Once the ham has been placed on the conveyor belt, it goes to the washing chamber where an advanced tilting sprinkler system adapts to the surface of the ham, injecting pressurized water and causing the salt to be dragged away, which is collected in a lower tank. This water is recovered in the washing circuit allowing significant savings. The ham is then rinsed with mains water. The ham comes out of the washing machine and is ready to be hung.
Start price 11.000 €

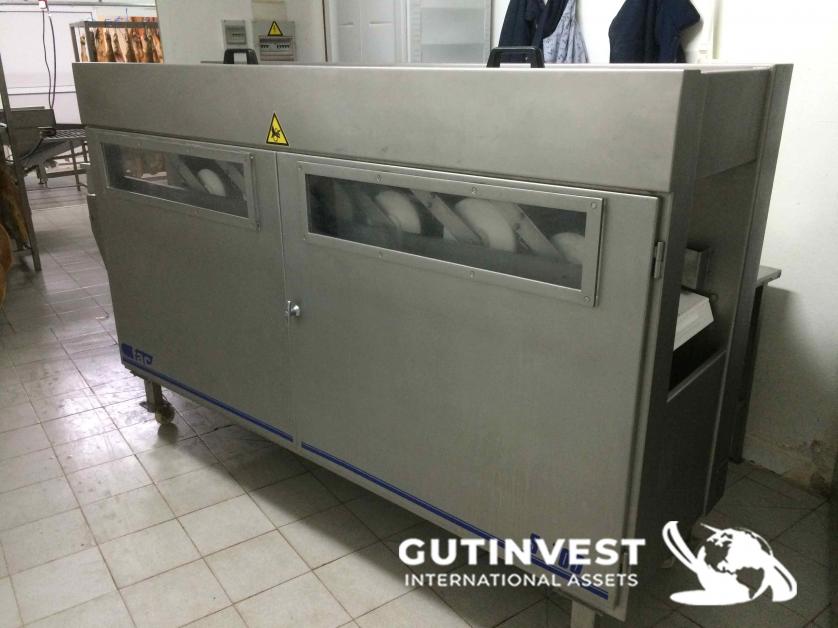

ManufacturerFAC ModelS-700 ObservationsHam Massage-Bleeding Machine Production: 600 pieces/hour. Compressed air pressure: 6kg/cm2. Machine dimensions: 2.420x780x1.420mm. Approximate weight: 600Kg. - Specific technical plastic conveyor belt. - Technical plastic grippers with pneumatic actuation and adjustable massage. - Mechanically operated oscillators. - AISI-304 stainless steel construction. The designed system allows for highly efficient line work with exceptional bleeding of each and every one of the parts regardless of the anatomical differences between them due to the adaptability of the whole assembly. The massage complemented with bleeding will allow a faster and more uniform penetration and absorption of salt. Once the ham has been positioned on the drag belt, it passes under the action of the grippers formed by conical rollers with different diameters and inclinations for its total adaptation to the entire surface of the pieces, maximizing the pressure area and executing an optimal bleed. The massage system is based on the action of oscillators that press a platform that, with or without a tilting movement, transmit the pressure cyclically to the drag belt on which the ham is transported.
ManufacturerFAC ModelS-700 ObservationsHam Massage-Bleeding Machine Production: 600 pieces/hour. Compressed air pressure: 6kg/cm2. Machine dimensions: 2.420x780x1.420mm. Approximate weight: 600Kg. - Specific technical plastic conveyor belt. - Technical plastic grippers with pneumatic actuation and adjustable massage. - Mechanically operated oscillators. - AISI-304 stainless steel construction. The designed system allows for highly efficient line work with exceptional bleeding of each and every one of the parts regardless of the anatomical differences between them due to the adaptability of the whole assembly. The massage complemented with bleeding will allow a faster and more uniform penetration and absorption of salt. Once the ham has been positioned on the drag belt, it passes under the action of the grippers formed by conical rollers with different diameters and inclinations for its total adaptation to the entire surface of the pieces, maximizing the pressure area and executing an optimal bleed. The massage system is based on the action of oscillators that press a platform that, with or without a tilting movement, transmit the pressure cyclically to the drag belt on which the ham is transported.
Start price 14.500 €

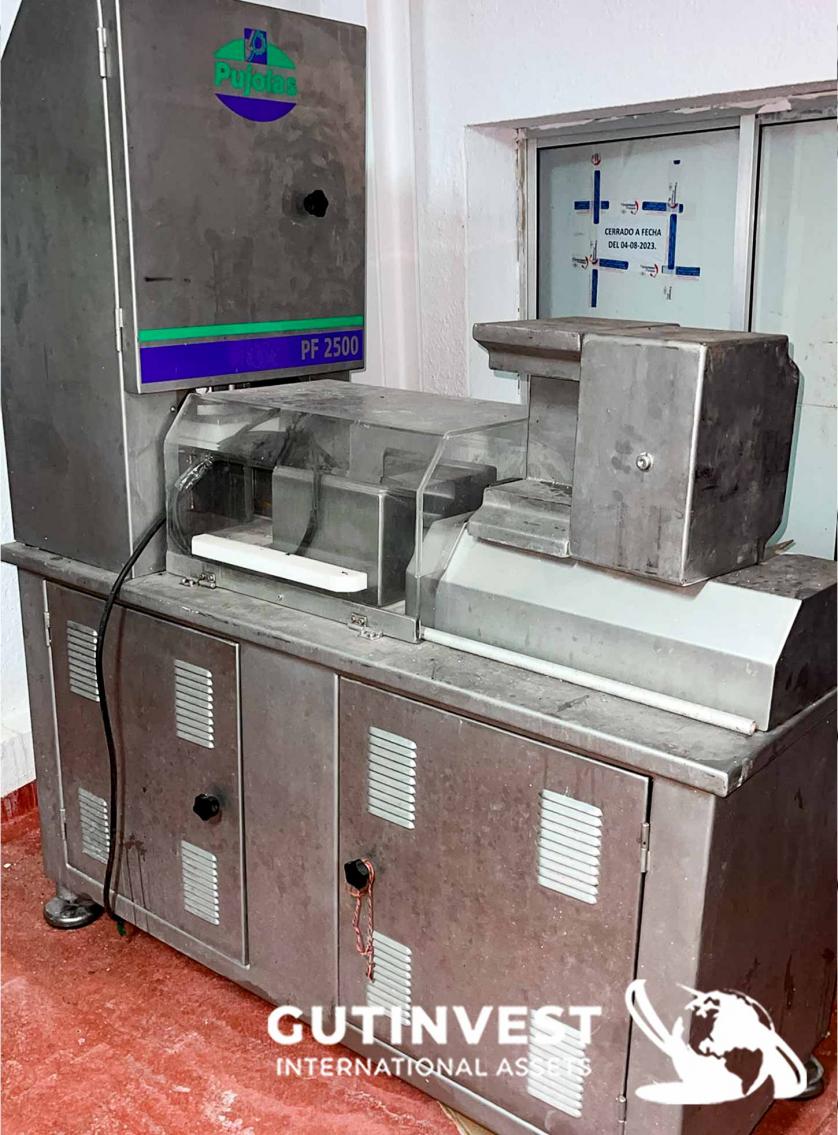

ManufacturerPUJOLAS ModelPF 2500 Year2007 ObservationsHam forming press. Forming press for boneless hams and shoulders type Serrano, Iberian and rectangular with mold change. Open mold that allows the operator to insert the ham completely flat. Side and top pressing system. Production capacity 2 cycles per minute.
ManufacturerPUJOLAS ModelPF 2500 Year2007 ObservationsHam forming press. Forming press for boneless hams and shoulders type Serrano, Iberian and rectangular with mold change. Open mold that allows the operator to insert the ham completely flat. Side and top pressing system. Production capacity 2 cycles per minute.
Start price 10.000 €
