CNC machining and cutting center – 6 axes for aluminum profiles

No. of sale: 191022A

Starting date
20/09/2022 16:00:00
Closing Date
19/01/2023 16:00:00
Viewing days
by appointment
Location
Spain

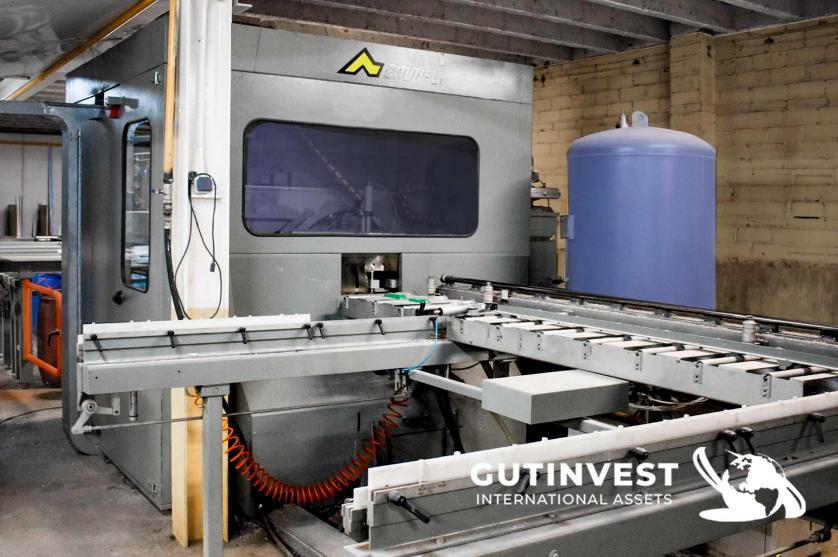

Direct sale of CNC machining and cutting center – 6 axes for aluminum profiles "EMMEGI", model: QUADRA 2, Year: 1998, dimensions bars min. Max.: 800-7.500mm, working hours: 5.500 hours, in good condition.
Sale commission
10% buyers premium
Payment methods
General conditions
Filters

Sold
1 - CNC machining and cutting center - 6 axes

1 - CNC machining and cutting center - 6 axes

Manufacturer
EMMEGI
Model
QUADRA 2
Year
1998
Observations
CNC machining and cutting center - 6 axes.
Dimensions bars Min.- Max.: 800-7,500mm.
Working hours: 5.500 hours.

Composed of:
· Warehouse load bars: maximum length: 7.500mm.
Lload capacity with step 100mm: 20 bars.
Load capacity with step 200mm: 10 bars.
Maximum load weight:  500Kg.

· Bar positioning unit: carriage travel speed: 0-60m/min.
Length min. -max. Bars: 500-7500mm.
Motor power: 1.9kW.

· Milling unit: Electromandrel power: 4.5kW.
Rotation speed: 20,000-28,000rev/min, tool cone: ISO 25.
 X-axis stroke - longitudinal: 240mm, transverse Y-axis stroke: 350mm, Z-axis stroke - vertical: 350mm, U-axis stroke - longitudinal Pusher: 9,500mm, A-axis stroke - tesselle rotation: 360º.

· Cutting unit: blade diameter: 550mm, cutting angles: electronically variable between 22.5º and 157.5º. Total power: 35kW.

Total weight complete line: 8.700Kg.


Start price 66.000 €
