No. of sale: 201223M
Starting date

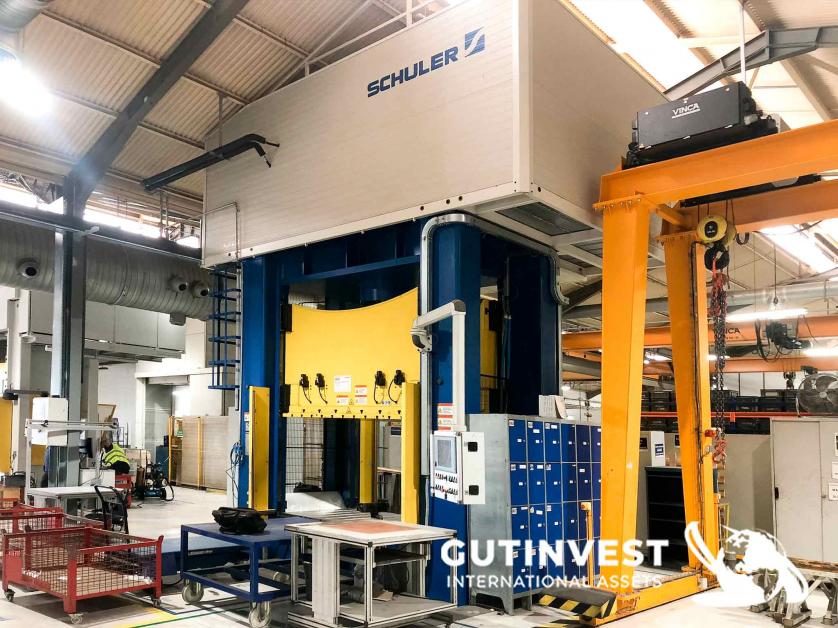

ManufacturerSCHULER ModelHPX-400-2.5x1.3 Year2017 ObservationsHydraulic Press - 400Tn. Nominal force: 4.000 kN.
Maximum lifting length: 900 mm. Working height 1300 mm.
Closing speed 500 mm/s.
Maximum working speed 50 mm/s. Working speed with nominal force 20 mm/s.
Basic tool area max.:(WxD) 2500x1300 mm.
Basic min. tool surface with nominal force (W x D) 1250x650 mm.
Min. tool height (H): 400 mm. Total tool weight: 10,000 Kgrs. Max. Tool top weight: 5,000 Kgrs. Left-right allowable external load: 300 kN.
Allowable front-and-rear external load 150 kNm.
Installed power 100 kW. Nominal current 180 A. Voltage 400 V. Frequency 50 Hz. Hydraulic operating pressure 315 bar.
Oil capacity 2000 l. Oil type HLP42 DIN 5124.
Total weight: 47.000 Kgrs.
ManufacturerSCHULER ModelHPX-400-2.5x1.3 Year2017 ObservationsHydraulic Press - 400Tn. Nominal force: 4.000 kN.
Maximum lifting length: 900 mm. Working height 1300 mm.
Closing speed 500 mm/s.
Maximum working speed 50 mm/s. Working speed with nominal force 20 mm/s.
Basic tool area max.:(WxD) 2500x1300 mm.
Basic min. tool surface with nominal force (W x D) 1250x650 mm.
Min. tool height (H): 400 mm. Total tool weight: 10,000 Kgrs. Max. Tool top weight: 5,000 Kgrs. Left-right allowable external load: 300 kN.
Allowable front-and-rear external load 150 kNm.
Installed power 100 kW. Nominal current 180 A. Voltage 400 V. Frequency 50 Hz. Hydraulic operating pressure 315 bar.
Oil capacity 2000 l. Oil type HLP42 DIN 5124.
Total weight: 47.000 Kgrs.
Start price 250.000 €
