Cutting line - aluminium bars with handling and packaging system

No. of sale: 210224M

Starting date
29/12/2023 16:00:00
Closing Date
03/07/2024 16:00:00
Viewing days
by appointment
Location
Czech Republic
Direct sale of cutting line - aluminium bars "ExactCut S.R.O", model: MAM 150 (2020) with bar handling and packaging and strapping system "Messersi", Modelo: VR70 (2021). It is currently disassembled and packed ready for truck loading. Condition: Like new
Payment methods

Manufacturer
ExactCut S.R.O
Model
MAM 150
Year
2020
Observations
Aluminum bars cutting machine with bars handling system:
Cutting diameter: 30 - 120 mm
Bar lenght: 5.000 - 6.200 mm / adjustable
Accurance: +/-1mm
Aluminium alloys EN AW 6082, EN AW 6110A, EN; AE 6110, EN AW 6182
Cutting speed D 120mm max. 90 sec
Cutting speed D 60mm max. 25 sec
Cutting speed D 30mm max. 13 sec
With Bars handling system:
Type: chain conveyor with pulleys
Pulley type: rubberized pulley with a steel core enabling the renewal of the rubberized layer (polyurethane). Length: approx. 8.200 mm
​Conveyed part: Round rod Material: Aluminum
Diameter: 30 mm - 150 mm
Maximum rod weight: 296 kg
Maximum length: 6,200 mm
Max. transport speed: 2.4 m/min (rod with a diameter of 30 mm) Min. transport speed: 0.33 m/min (130 mm diameter bar)


Start price 50.000 €

Manufacturer
ExactCut S.R.O
Model
MAM 150
Year
2020
Observations
Aluminum bars cutting machine with bars handling system:
Cutting diameter: 30 - 120 mm
Bar lenght: 5.000 - 6.200 mm / adjustable
Accurance: +/-1mm
Aluminium alloys EN AW 6082, EN AW 6110A, EN; AE 6110, EN AW 6182
Cutting speed D 120mm max. 90 sec
Cutting speed D 60mm max. 25 sec
Cutting speed D 30mm max. 13 sec
With Bars handling system:
Type: chain conveyor with pulleys
Pulley type: rubberized pulley with a steel core enabling the renewal of the rubberized layer (polyurethane). Length: approx. 8.200 mm
​Conveyed part: Round rod Material: Aluminum
Diameter: 30 mm - 150 mm
Maximum rod weight: 296 kg
Maximum length: 6,200 mm
Max. transport speed: 2.4 m/min (rod with a diameter of 30 mm) Min. transport speed: 0.33 m/min (130 mm diameter bar)


Start price 50.000 €

Sold
1  -  Aluminum bars Cutting machine
50.000 €

Manufacturer
Messersi
Model
VR70
Year
2021
Observations
Packaging line for aluminum bars
Technical data of the strapping device:
- adjustable tightening force of the binding tape - maximum tightening force up to 7000N (aggregate MS700)
- adjustable weld cooling time (1 - 3s depending on tightening force and thickness of binding tape)
- material of the binding tape (PP - polypropylene or PET - polyester)
- tape width: 19 mm
- tape thickness: 0.5 - 1.27mm (PET) or 0.8 - 1.3mm (PP)
- speed of inserting the tape into the frame and pulling it out of the frame: 2.5 - 5.5 m/s
- tape tightening speed: 0.1 - 0.25 m/s
- Simatic S7-1200 control system
- three-color signaling beacon
- free-standing electrical switchboard with control panel
- protective pneumatic locking device - head movement blocking in case of power failure
- tape tension leveling system
- safety optical sensor of passage


Start price 40.000 €

Manufacturer
Messersi
Model
VR70
Year
2021
Observations
Packaging line for aluminum bars
Technical data of the strapping device:
- adjustable tightening force of the binding tape - maximum tightening force up to 7000N (aggregate MS700)
- adjustable weld cooling time (1 - 3s depending on tightening force and thickness of binding tape)
- material of the binding tape (PP - polypropylene or PET - polyester)
- tape width: 19 mm
- tape thickness: 0.5 - 1.27mm (PET) or 0.8 - 1.3mm (PP)
- speed of inserting the tape into the frame and pulling it out of the frame: 2.5 - 5.5 m/s
- tape tightening speed: 0.1 - 0.25 m/s
- Simatic S7-1200 control system
- three-color signaling beacon
- free-standing electrical switchboard with control panel
- protective pneumatic locking device - head movement blocking in case of power failure
- tape tension leveling system
- safety optical sensor of passage


Start price 40.000 €

Sold
2  -  Packaging line for aluminum bars
40.000 €

Manufacturer
LAC S.R.O
Model
PP 140/85
Year
2020
Observations
PP tempering furnace up to 650 / 850 °C.   Power: 14Kw, 20.2A. 400/230V, 50Hz, Approx. weight: 350Kg. The smallest furnace with air circulation that is suitable even for temperatures below 600 °C Uniform heating of the load thanks to the horizontal circulation of the internal atmosphere - this is the biggest advantage of this tempering furnace.



Start price 2.900 €

Manufacturer
LAC S.R.O
Model
PP 140/85
Year
2020
Observations
PP tempering furnace up to 650 / 850 °C.   Power: 14Kw, 20.2A. 400/230V, 50Hz, Approx. weight: 350Kg. The smallest furnace with air circulation that is suitable even for temperatures below 600 °C Uniform heating of the load thanks to the horizontal circulation of the internal atmosphere - this is the biggest advantage of this tempering furnace.



Start price 2.900 €

Sold

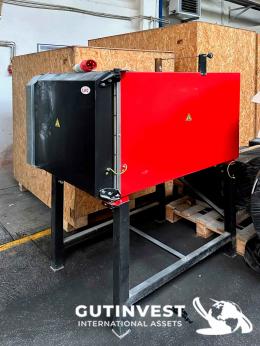

3  -  Tempering furnace
2.900 €
