No. of sale: 220525M
Starting date

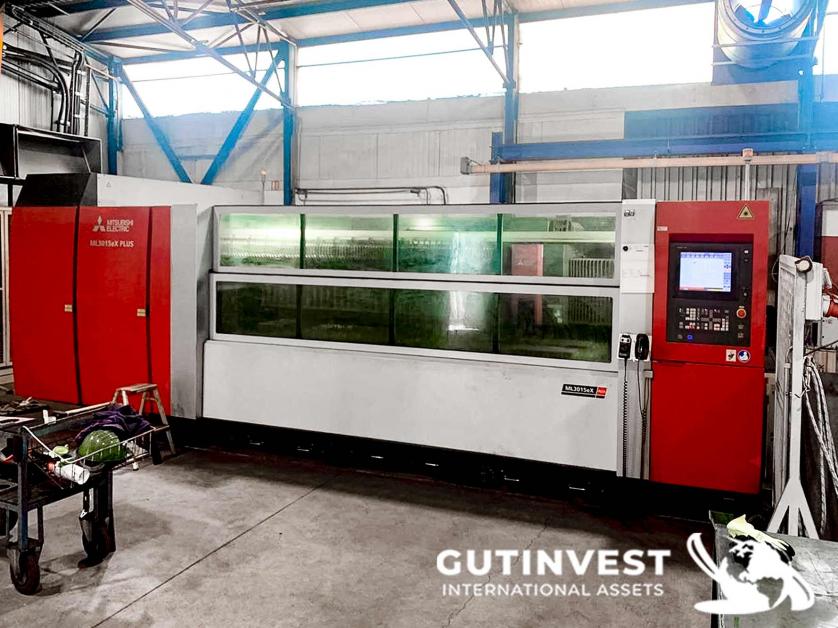

ManufacturerMITSUBISHI ModelML3015EX Year2012 ObservationsCO2 laser cutting machine
Switch opening time: 35.900 hour , laser cutting time: 20.148 hour.
Workpiece size 3050 x 1525 mm / max weight 950 kg
Resonator: 4.5 kw
Automatic pallet change
LOAD MASTER loader
Cutting Thickness:
-Mild steel: 26 mm (oxygen)
- Stainless steel: 12 mm (nitrogen )
- 10mm aluminum nitrogen (weather)
Axle movement: X-3100mm / Y-1565mm / Z-150mm
Fast travel speed: X ve Y - 100m / munite
Fast travel speed: Z - 65m / munite
Maximum feed 50m / munite
7,5 inç (2x) 7,5 inç auto focus head
Automatic edge/plate detection (auto rotation)
Mitsubishi 4500 Watt cross flow resonator (peak power of 5000W pulse)
CO2 lazer CO2 / CO / N2 / He = 8/4/60/28
Laser gas consumption 3 liters / hour
Double cut function allows surface removal and cutting on poor quality materials and
shielded sheet metal
Edge punching function
Control of slag reduction in corners
Retraction of the head with the normal, cross and arc method
90% energy saving in standby mode
air cooled chiller
Fume extractor
High pressure gas unit
Mitsubishi LC 30Bx CNC controller with 15 inch TFT touch screen, 20 GB hard drive, USB
and ethernet
Barcode reader
POWER SOURCE
Job Lifter
Dianite cast iron machine frame
Trafo
Power supply 3PH, 415V, 109Kva
External dimensions: 10.180 mm x 3.340 mm x 2.260 mm (G x G x Y)
Total weight of the machine: 10.600 kg
ManufacturerMITSUBISHI ModelML3015EX Year2012 ObservationsCO2 laser cutting machine
Switch opening time: 35.900 hour , laser cutting time: 20.148 hour.
Workpiece size 3050 x 1525 mm / max weight 950 kg
Resonator: 4.5 kw
Automatic pallet change
LOAD MASTER loader
Cutting Thickness:
-Mild steel: 26 mm (oxygen)
- Stainless steel: 12 mm (nitrogen )
- 10mm aluminum nitrogen (weather)
Axle movement: X-3100mm / Y-1565mm / Z-150mm
Fast travel speed: X ve Y - 100m / munite
Fast travel speed: Z - 65m / munite
Maximum feed 50m / munite
7,5 inç (2x) 7,5 inç auto focus head
Automatic edge/plate detection (auto rotation)
Mitsubishi 4500 Watt cross flow resonator (peak power of 5000W pulse)
CO2 lazer CO2 / CO / N2 / He = 8/4/60/28
Laser gas consumption 3 liters / hour
Double cut function allows surface removal and cutting on poor quality materials and
shielded sheet metal
Edge punching function
Control of slag reduction in corners
Retraction of the head with the normal, cross and arc method
90% energy saving in standby mode
air cooled chiller
Fume extractor
High pressure gas unit
Mitsubishi LC 30Bx CNC controller with 15 inch TFT touch screen, 20 GB hard drive, USB
and ethernet
Barcode reader
POWER SOURCE
Job Lifter
Dianite cast iron machine frame
Trafo
Power supply 3PH, 415V, 109Kva
External dimensions: 10.180 mm x 3.340 mm x 2.260 mm (G x G x Y)
Total weight of the machine: 10.600 kg
Start price 52.000 €
