No. of sale: 250325MA
Starting date

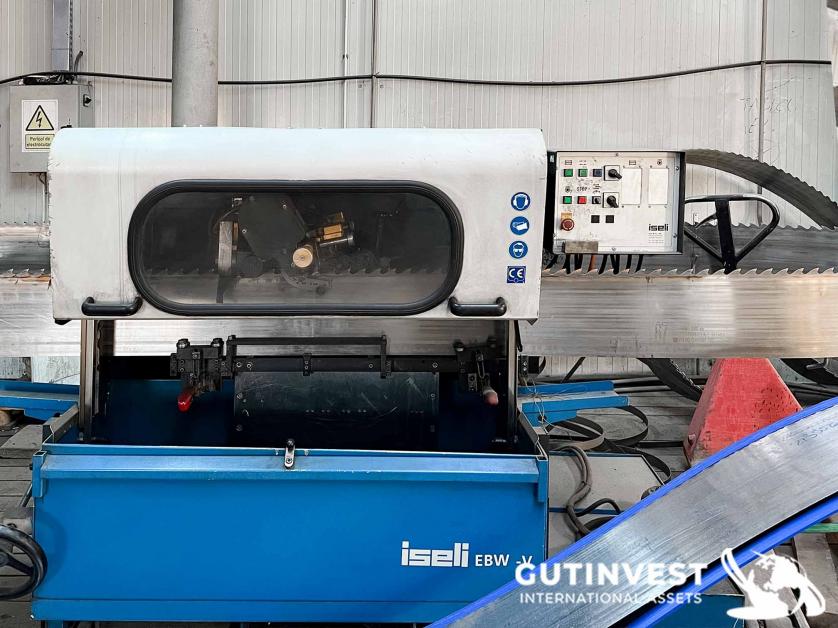

ManufacturerISELI Model EBW-V Year2012 No. Series240081 ObservationsAutomatic side grinding machine for band, circular and gang saw blades in wet grinding
Tooth pitch: 15 - 100mm. Front rake angle: 0 - 35°. Clearance angle Tooth fase: 0° - 7° Clearance angle Tooth back: 0° - 7°. Working speed: 10 - 30 t / min** Band saws: Blade length: from 6000mm. Blade width: 50 - 350mm. Blade thickness: from 0.8mm. Circular saws: Circular saw diameter: 180 - 800mm. Blade thickness: up to 6mm. Gang saws: Toothed lengh: up to 1300mm. Blade length: 75 - 180mm. Blade thickness: from 0,8mm Dimensions machine: 2200x1300x1900mm, Weight machine: 900Kg.
ManufacturerISELI Model EBW-V Year2012 No. Series240081 ObservationsAutomatic side grinding machine for band, circular and gang saw blades in wet grinding
Tooth pitch: 15 - 100mm. Front rake angle: 0 - 35°. Clearance angle Tooth fase: 0° - 7° Clearance angle Tooth back: 0° - 7°. Working speed: 10 - 30 t / min** Band saws: Blade length: from 6000mm. Blade width: 50 - 350mm. Blade thickness: from 0.8mm. Circular saws: Circular saw diameter: 180 - 800mm. Blade thickness: up to 6mm. Gang saws: Toothed lengh: up to 1300mm. Blade length: 75 - 180mm. Blade thickness: from 0,8mm Dimensions machine: 2200x1300x1900mm, Weight machine: 900Kg.
Start price 12.500 €

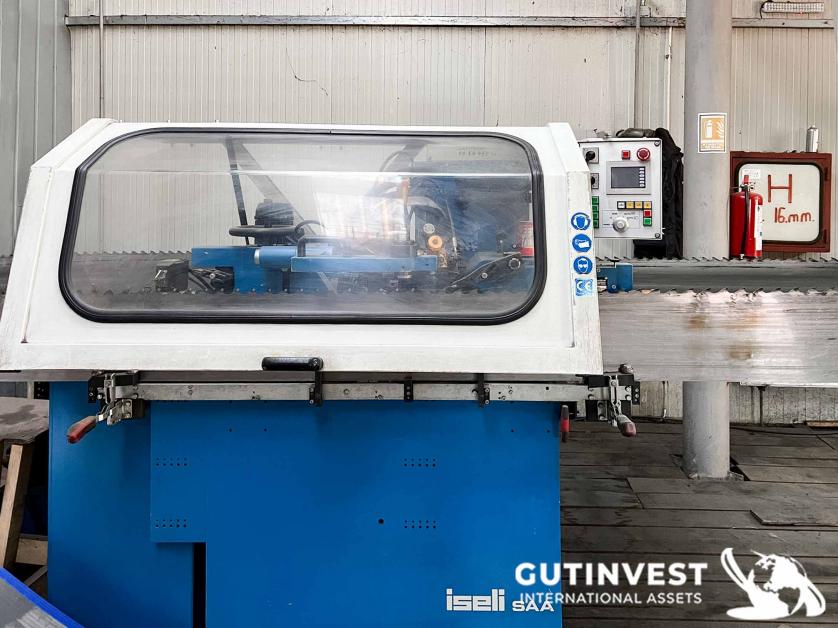

ManufacturerISELI Model SAA Year2012 No. Series240091 ObservationsFully automatic Stellit welding machine for packaging the teeth of band saw blades, reciprocating saw blades and circular saw blades by resistance welding process. In addition to the plasma welding process, ISELI stylizes its band saw, reciprocating saw and circular saw blades with the resistance welding process. Blade thickness: 0.8 - 3.2 mm. Band saws: Tooth pitch: 13 - 115 mm, Standard blade length: from 5,500 mm, Optional blade length: from 4,700 mm. Standard blade width: 80 - 360 mm (70 mm to the bottom of the tooth). Circular saws: Diameter: Ø 250 - 1200 mm, Ø 22 - 210 mm. reciprocating saws: Tooth length: up to 1500 mm, Blade width: 80 - 180 mm.
ManufacturerISELI Model SAA Year2012 No. Series240091 ObservationsFully automatic Stellit welding machine for packaging the teeth of band saw blades, reciprocating saw blades and circular saw blades by resistance welding process. In addition to the plasma welding process, ISELI stylizes its band saw, reciprocating saw and circular saw blades with the resistance welding process. Blade thickness: 0.8 - 3.2 mm. Band saws: Tooth pitch: 13 - 115 mm, Standard blade length: from 5,500 mm, Optional blade length: from 4,700 mm. Standard blade width: 80 - 360 mm (70 mm to the bottom of the tooth). Circular saws: Diameter: Ø 250 - 1200 mm, Ø 22 - 210 mm. reciprocating saws: Tooth length: up to 1500 mm, Blade width: 80 - 180 mm.
Start price 12.500 €

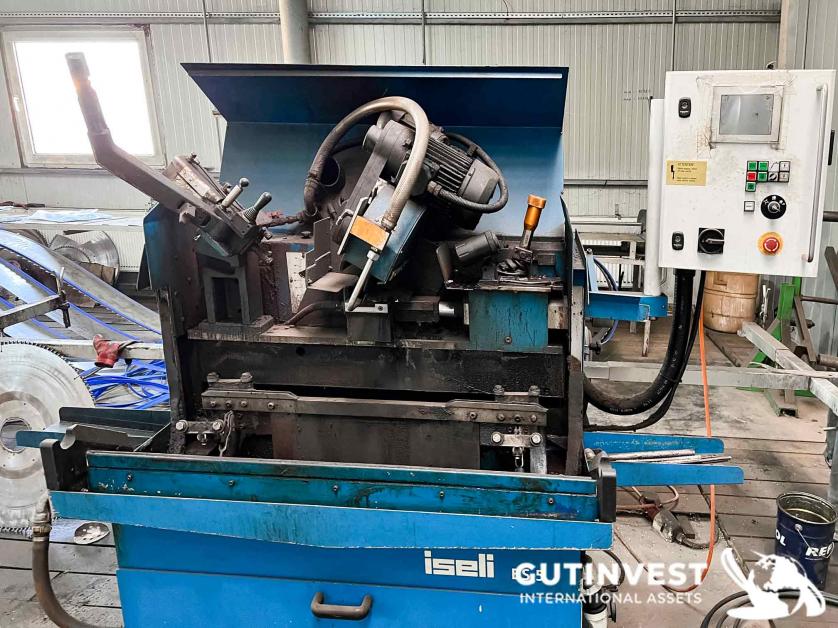

ManufacturerISELI Model BS 5 Year2012 No. Series240101 ObservationsSharpening machine for band saw blades of wood
Automatic sharpening machine for log band saw blades and band resawing blades.• Corundum grinding-wheel Diameter: 300 mm Bore diameter: 32 mm Width: 8/10/12 mm • CBN grinding-wheel Diameter: 250 mm Bore diameter: 25/32 mm Width: 6/10 mm • Single tooth shape cam or a bank of 3 cams • Tooth pitch: 25 to 60 mm • Tooth height: 6 to 20 mm • Front rake angle: 5 to 35° • Blade width: 60 to 360 mm • Blade length: 5'600 to 14'000 mm • Feeding speed with frequency converter: 10 to 40 teeth/min • Peripherical speed of grinding-wheel: 35 m/sec. with frequency converter: 25 to 60 m/sec. • Connected load: 3,0 kW approx. Compressed air supply: 6 bar • Weight of machine - without carrousel: 620 kg • Height of machine: 170 cm
ManufacturerISELI Model BS 5 Year2012 No. Series240101 ObservationsSharpening machine for band saw blades of wood
Automatic sharpening machine for log band saw blades and band resawing blades.• Corundum grinding-wheel Diameter: 300 mm Bore diameter: 32 mm Width: 8/10/12 mm • CBN grinding-wheel Diameter: 250 mm Bore diameter: 25/32 mm Width: 6/10 mm • Single tooth shape cam or a bank of 3 cams • Tooth pitch: 25 to 60 mm • Tooth height: 6 to 20 mm • Front rake angle: 5 to 35° • Blade width: 60 to 360 mm • Blade length: 5'600 to 14'000 mm • Feeding speed with frequency converter: 10 to 40 teeth/min • Peripherical speed of grinding-wheel: 35 m/sec. with frequency converter: 25 to 60 m/sec. • Connected load: 3,0 kW approx. Compressed air supply: 6 bar • Weight of machine - without carrousel: 620 kg • Height of machine: 170 cm
Start price 11.500 €
