No. of sale: 250423M
Starting date

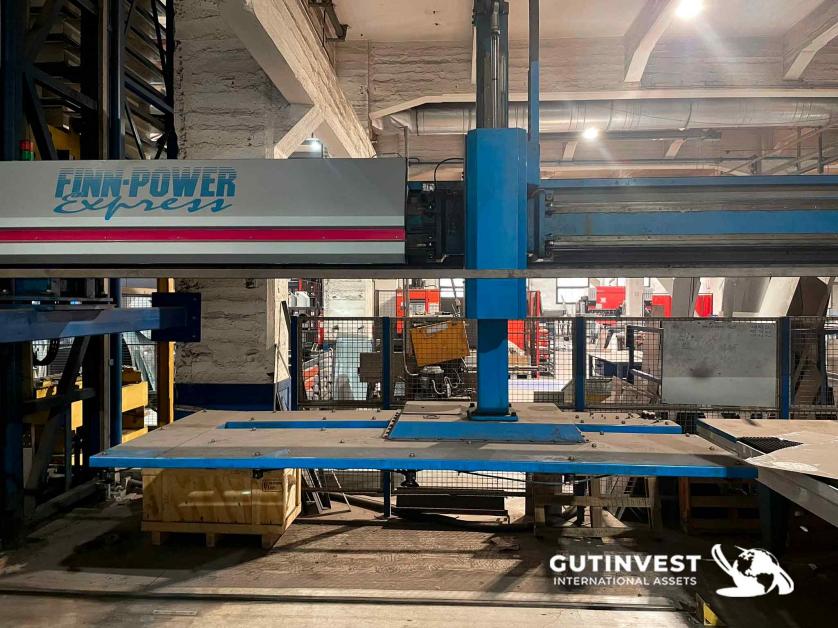

ManufacturerFINN POWER ModelF6-25SB Year1999 ObservationsCNC punching machine.
Max. working area: 3.000 x 1.500 mm.
Punching force: 30 Tns.
Material thickness (punching): max.: 8 mm.
Numerical control: SIEMENS 840D.
Max compressed air consumption: 30 l/s.
Maximum punch diameter: 89 mm
Number of turret stations (pcs):
20 (D 2x Index, B, 10x, 6 6X (2x Index)
Maximum part weight: 200 kg.
Max installed power:30 kW.
Compressed air pressure: 6 bar.
Max axis speed [X-axis]: 88 m/min
Max axis speed [Y-axis]: 60 m/min.
Simultaneous positioning speed (X/Y): 106 m/min.
Machine weight approx.: 14.500kg.
Includes sheet metal loading and unloading arm.
ManufacturerFINN POWER ModelF6-25SB Year1999 ObservationsCNC punching machine.
Max. working area: 3.000 x 1.500 mm.
Punching force: 30 Tns.
Material thickness (punching): max.: 8 mm.
Numerical control: SIEMENS 840D.
Max compressed air consumption: 30 l/s.
Maximum punch diameter: 89 mm
Number of turret stations (pcs):
20 (D 2x Index, B, 10x, 6 6X (2x Index)
Maximum part weight: 200 kg.
Max installed power:30 kW.
Compressed air pressure: 6 bar.
Max axis speed [X-axis]: 88 m/min
Max axis speed [Y-axis]: 60 m/min.
Simultaneous positioning speed (X/Y): 106 m/min.
Machine weight approx.: 14.500kg.
Includes sheet metal loading and unloading arm.
Start price 22.000 €
