CNC fixed bed milling machine - MTE Mod. BF-3200

No. of sale: 260923M

Starting date
31/07/2023 16:00:00
Closing Date
19/10/2023 16:00:00
Viewing days
by appointment
Location
Spain

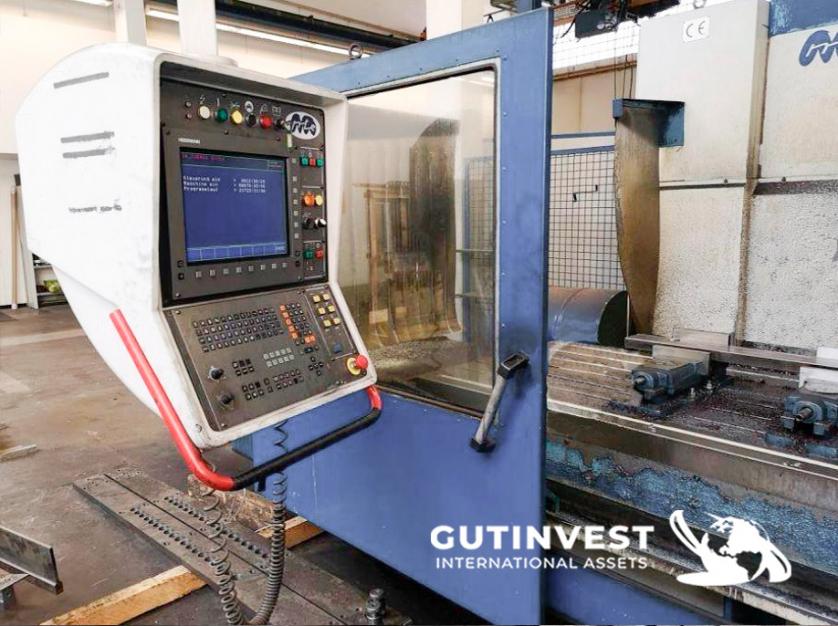

Direct sale of CNC fixed bed milling machine "MTE", model: BF-3200 (2002), control: HEIDENHAIN TNC 426. Axes X, Y, Z: 3.000x1.000x1.000mm. In good condition.
Payment methods

Manufacturer
MTE
Model
BF-3200
Year
2002
Observations
CNC fixed bed milling machine. Control: HEIDENHAIN TNC 426.
Axle travels X,Y,Z: 3.000x1.000x1.000m
Table clamping: 3.200x1.000mm
Max. table load capacity: 11.000kg
Fast feeding shafts: 10m/min, working: 1-4.000mm/min
Max. spindle torque: 1.460Nm
Tool holder: SK 50; Tool: DIN 69871
total power: 30Kw, Voltage: 400V.
Machine weight:  17.000Kg.
Includes:
Chip conveyor, Hydraulic system, Coolant tank, Electronic steering wheel and sliding doors.



Start price 55.000 €

Manufacturer
MTE
Model
BF-3200
Year
2002
Observations
CNC fixed bed milling machine. Control: HEIDENHAIN TNC 426.
Axle travels X,Y,Z: 3.000x1.000x1.000m
Table clamping: 3.200x1.000mm
Max. table load capacity: 11.000kg
Fast feeding shafts: 10m/min, working: 1-4.000mm/min
Max. spindle torque: 1.460Nm
Tool holder: SK 50; Tool: DIN 69871
total power: 30Kw, Voltage: 400V.
Machine weight:  17.000Kg.
Includes:
Chip conveyor, Hydraulic system, Coolant tank, Electronic steering wheel and sliding doors.



Start price 55.000 €

Sold
1  -  CNC fixed bed milling machine
55.000 €
