Complete line for welded pipe manufacturing - OLMA

No. of sale: 270922M

Starting date
22/07/2022 16:00:00
Closing Date
06/10/2022 16:00:00
Viewing days
by appointment
Location
Spain
Direct sale of complete line for manufacture of welded pipe (round, square and rectangular tubes) "OLMA" Line of profiling, feeding, unloading, high frequency welding and tooling. Includes set of rollers from 20 to 77mm.
Sale commission
15% buyers premium
Payment methods

Manufacturer
OLMA
Observations

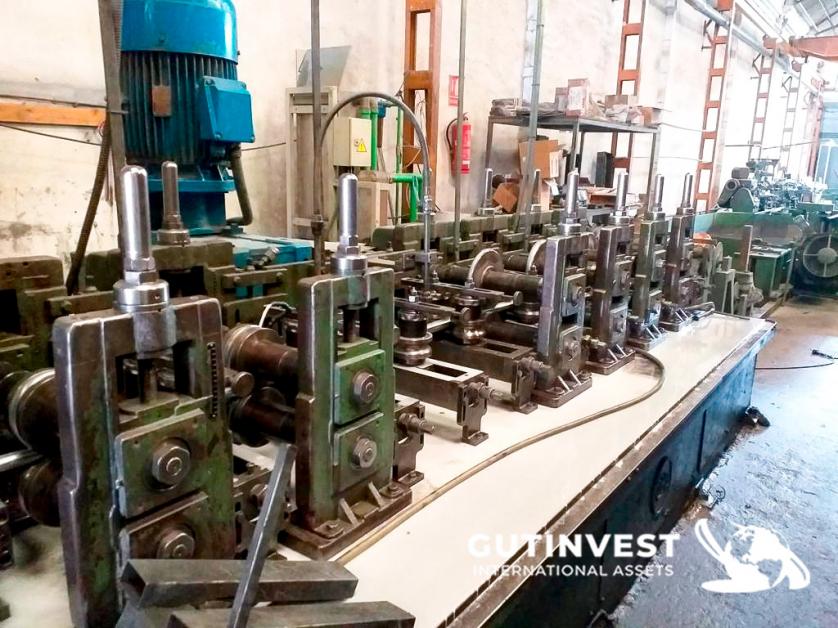

Complete line for the manufacture of welded pipe tubes(round, square and rectangular tubes). Line for profiling, feeding, unloading, high frequency welding and tooling. It is composed of a tube formation profiler with six vertical and six horizontal profiling towers, as well as a calibration profiler with four vertical towers plus four horizontal profiling towers, as well as a feeding and unloading system. It also consists of a 200 KW welding equipment from the firm GH Industrial, as well as the tube welding module composed of pipe-closing equipment and automatic deburring process, as well as cooling it. It also has a continuous galvanization system of welding by means of a zinc projection gun. It has an automatic milling disc cutting system, without burr and automatic cut control, as well as an automatic two-band discharge. Next to the welded pipe line, the roller sets of the following round tube sizes: 20/25/28/30/32/38/40/42/45/48/50/55/60/65/77 mm are delivered, as well as the rollers and scapegoats (8 units) for the manufacture of square and rectangular tubes of the measures corresponding to these rounds.



Start price 180.000 €

Manufacturer
OLMA
Observations
Complete line for the manufacture of welded pipe tubes(round, square and rectangular tubes). Line for profiling, feeding, unloading, high frequency welding and tooling. It is composed of a tube formation profiler with six vertical and six horizontal profiling towers, as well as a calibration profiler with four vertical towers plus four horizontal profiling towers, as well as a feeding and unloading system. It also consists of a 200 KW welding equipment from the firm GH Industrial, as well as the tube welding module composed of pipe-closing equipment and automatic deburring process, as well as cooling it. It also has a continuous galvanization system of welding by means of a zinc projection gun. It has an automatic milling disc cutting system, without burr and automatic cut control, as well as an automatic two-band discharge. Next to the welded pipe line, the roller sets of the following round tube sizes: 20/25/28/30/32/38/40/42/45/48/50/55/60/65/77 mm are delivered, as well as the rollers and scapegoats (8 units) for the manufacture of square and rectangular tubes of the measures corresponding to these rounds.



Start price 180.000 €

Sold
1  -  Complete line for manufacture of welded pipe tubes
180.000 €
